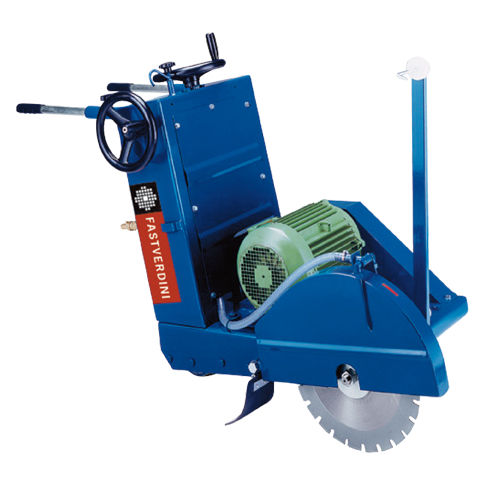

Concrete cutter NP 500

Product description
Asphalt and concrete cutting saw NP 500 designed for professional roadwork and construction use. Stable cutting performance with a 500 mm blade and up to 185 mm cutting depth. Fitted with a 50-litre steel cooling water tank and semi-automatic advancement. Electric start; motor 400 V - 50 Hz, 7.3 kW (10.0 Hp); operating weight approx. 183 kg.

Technical specifications (table)
Model: NP 500
Model code (SKU): PFSNP800
Max blade diameter: 500 mm
Max cutting depth: 185 mm
Operating weight: 183 kg
Motor: 400 V - 50 Hz
Motor power: 7.3 kW (10.0 Hp)
Start: Electric
Cooling water tank: 50 L (steel)
Feed: Semi-automatic
Depth adjustment: Handwheel
Steering corrector: On request
Stage V: Yes

Features / technical specifications

• Stable cutting platform compatible with 500 mm blades
• Semi-automatic feed for consistent progress and reduced operator fatigue
• 50 L steel cooling water tank for blade cooling and dust control
• Handwheel depth adjustment for precise and repeatable cuts
• Stage V compliant motor (7.3 kW) for regulatory compatibility
• Optional steering corrector and accessory mounting points for customization

Applications
Road maintenance, slot cutting for joints, repair and renovation of pavements and concrete slabs; suitable for construction contractors and rental fleets.

Ordering and options
Reference: PFSNP800. Available accessories: diamond blades for asphalt and concrete, steering corrector (on request), spare parts kit. Contact sales for customization, transport and spare-parts information.
