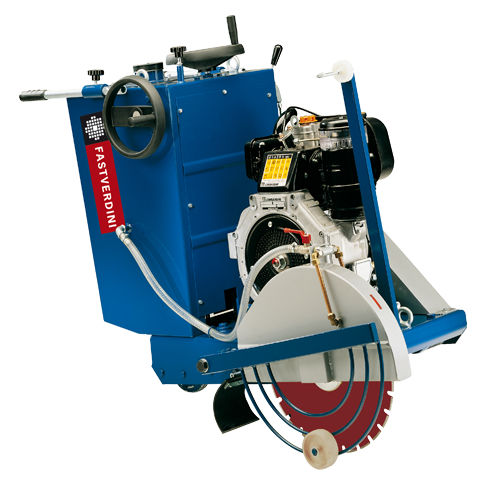

Concrete cutter ND

Description Asphalt and concrete cutting saw designed for stable, high-power cutting operations. Features a 50 L steel cooling water tank and semi-automatic feed for consistent advance. Suitable for construction and road maintenance applications where precision and continuous operation are required.

Category

• Asphalt and concrete cutting saws
• 300/500
• ND Series

Available engines

• Hatz diesel 1D81
• Kohler Lombardini diesel KD15440

Features / Technical specifications

• Model: ND
• Model codes: ND, PFSNDHE0H, PFSNDSE0
• Max blade diameter (mm): 500
• Max cutting depth (mm): 185
• Operating weight (kg): 198, 200
• Engine: Hatz diesel 1D81; Kohler Lombardini diesel KD15440
• Engine power kW (Hp): 11.0 (15.0); 8.1 (11.0)
• Start: Electric
• Cooling water tank capacity (L): 50 (steel)
• Feed: Semi-automatic
• Depth adjustment: Handwheel
• Direction corrector: Optional
• Stage V: Yes
