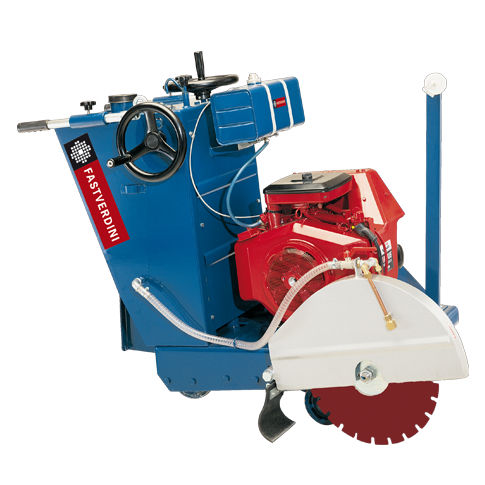

Concrete cutter NC20 M

Description
Professional high-power asphalt and concrete cutting saw designed for deep cuts and heavy-duty site work. Supplied with a 50-litre steel cooling water tank and an optional direction corrector, the NC20 M is intended for roadworks, civil construction and contractors requiring reliable semi-automatic feed.

Main features

• Application: cutting asphalt and concrete, including high thickness
• Maximum blade diameter: 600 mm
• Maximum cutting depth: 235 mm
• Cooling water tank: 50 L, steel
• Direction corrector: available on request
• Feed: Semi-automatic
• Depth adjustment: Handwheel

Technical specifications
Model: NC20 M
Model codes: NC20 M, PFSNCS21, PFSNCS21K
Max blade diameter (mm): 600
Max cutting depth (mm): 235
Operating weight (kg): 205, 215 (variants)
Engines: Honda petrol GX630; Kohler Lombardini petrol CH730
Engine power (kW (Hp)): 16.1 (22.0); 17.7 (24.0)
Start: Electric
Water tank capacity (L): 50 (steel)
Feed: Semi-automatic
Depth control: Handwheel
Direction corrector: Optional
Stage V: Yes

Characteristics / technical details

• Model: NC20 M
• Model codes / SKU: NC20 M, PFSNCS21, PFSNCS21K
• Maximum blade diameter: 600 mm
• Maximum cutting depth: 235 mm
• Operating weight: 205 kg or 215 kg (variants)
• Available engines: Honda petrol GX630; Kohler Lombardini petrol CH730
• Engine power: 16.1 kW (22.0 Hp) or 17.7 kW (24.0 Hp)
• Start: Electric
• Water tank capacity: 50 L (steel)
• Feed type: Semi-automatic
• Depth adjustment: Handwheel
• Direction corrector: Available on request
• Stage V compliance: Yes
