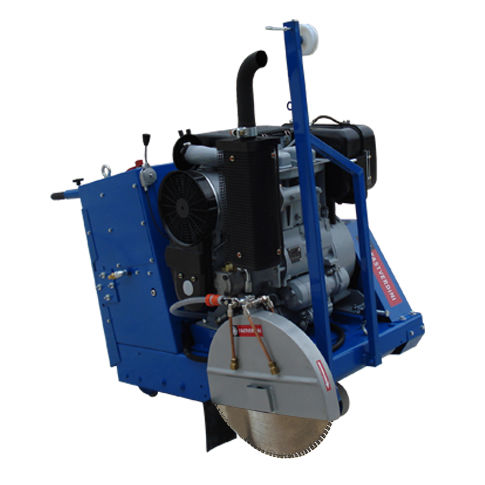

Concrete cutter VS32 800

Description
Floor/road cutting saw designed for cutting high-thickness asphalt and concrete. Automatic lifting and automatic feed provide consistent productivity on thick sections. Supplied with a self-priming cooling water pump and a standard direction corrector.

Variants

• Engines available: Briggs & Stratton (petrol); Hatz diesel 2M41
• Model codes: PFVS3200, PFVS3201, VS32 800

Technical specifications (table)
Model: VS32 800
Model codes: PFVS3200, PFVS3201, VS32 800
Max blade diameter mm: 800
Max cutting depth mm: 300
Operating weight kg: 672
Engine: Briggs & Stratton (petrol); Hatz diesel 2M41
Engine power kW (Hp): 20.5 (28.0); 25.0 (34.0); 25.7 (35.0)
Start: Electric
Water system: Self-priming cooling pump
Work feed: Automatic
Depth adjustment: Automatic
Direction corrector: Supplied
Stage V: No / Yes

Features / technical specifications

• Model: VS32 800
• Codes: PFVS3200, PFVS3201
• Maximum blade diameter: 800 mm
• Maximum cutting depth: 300 mm
• Operating weight: 672 kg
• Power units: Briggs & Stratton (petrol); Hatz diesel 2M41
• Engine power: 20.5 kW (28.0 Hp); 25.0 kW (34.0 Hp); 25.7 kW (35.0 Hp)
• Start: Electric
• Water system: Self-priming cooling pump
• Work feed: Automatic
• Depth control: Automatic
• Direction corrector: Supplied as standard
• Stage V compliance: available (No / Yes)
