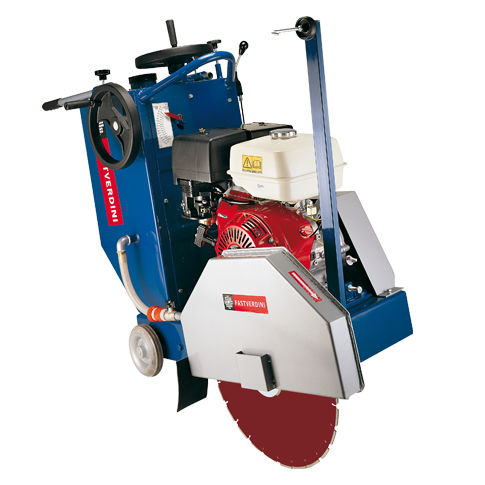

Concrete cutter LS 500

Description
Asphalt and concrete cutting saw designed to provide consistent cutting capacity and stability on construction sites. Equipped with a 50 L steel cooling water tank and a depth index. Semi-automatic feed available on request.

Variants / Engine

• Honda petrol GX390
• Kohler Lombardini petrol CH440

Category
Asphalt and concrete cutting saws; 300/500; LS series

Features / Technical specifications

• Model: LS 500
• Model codes: LS 500, PSLSSEH3, PSLSSEH3K
• Max blade diameter (mm): 500
• Max cutting depth (mm): 185
• Operating weight (kg): 160
• Engine: Honda petrol GX390; Kohler Lombardini petrol CH440
• Engine power (kW (Hp)): 9.6 (13.0) / 9.9 (13.5)
• Start: Recoil
• Water tank capacity (L): 50
• Feed: Push / Semi-automatic
• Depth adjustment: Handwheel
• Steering correction: –
• Stage V: Yes
