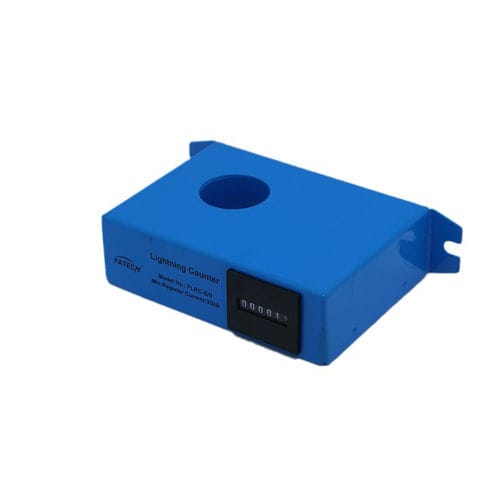

Analog lightning strike counter FLRC-S/II

6-digitelectromechanical

SMALL SIZE 6 DIGITS LIGHTNING COUNTER Item No: FLRC-S/II -Small size outdoor lightning counter, updated from FLRC-S. -Long service life due to No battery need. -Sensitive response and wide lightning current measuring range -Installation window dia. 30mm. -Lightning Counters are generally used by those customers of lightning protection products development companies, lightning protection construction companies and Power Company. -Lightning counter can count the thunderstorm during the certain time of surge protection products installed, and to give suggestion for choose which surge protection products. Type FLRC-S/II Minimum Current Sensitivity (rise time ≥8μs) >350A Maximum detectable current(Imax) : 100kA Sequence of impulse > 1s Display Model Electromechanical digital display Indicator Lightning Event 0~999999 Current Sample Mode Inductive Probe (Built-in) Working mode No battery/No power supply needed Operation temperature (℃) -20℃~+70℃ Dimension of installation window (mm) 30mm Dimension of counter (mm) 110x33x82mm Enclosure material Metal Plate Degree of protection IP67 Net weight 0.46kgs
