1.Description

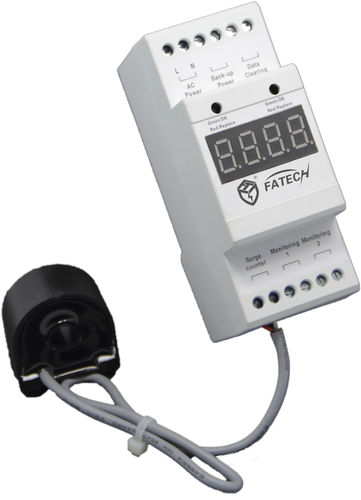

multi-function lightning strike counter, digital type,can recording lightning/surge event times, monitoring SPD working status, and/or the front breaker working status.
2. Characteristics
1)Multi-function lightning strike counter digital.
2)Installed together with SPD, or independently.
3)Recording lightning/surge event times, monitoring SPD working status, and/or the front breaker working status.
4)Online display status, terminals for monitor two groups circuit working status (two group SPDs, or one group SPD + one group MCB, or two MCBs working status).
5)Data recorded accurately, 9999 times, data will not lose when power off.
6)Terminal for connecting with back-up power, when power off, surge counter still can work.
7)DIN rail installation.
3. Electrical Parameters
1)Dimension of counter (mm): Width: 36mm
2)Enclosure material: Plastic,Flame retardant
3)Degree of protection: IP20
4)Counting Current (rise time ≥8μs): >0.1kA(8/20us)
5)Indicator: Lightning Event 0~9999
6)Display Model: LCD
7)Wiring spec.: 0.5mm²~1.5mm²
8)Nominal Voltage (Un): 220V~
9)Back-up power: 6~12VAC
10)Product power consumption: <0.5W
11)Data record: Data will not lose in case of power off
12)Data clearing: Short-circuit the “Reset” terminals
13)Inductance size: Dia. 9mm
14)Humidity: <90% (temp 25℃)
15)Operation temperature(℃): -40~+80
16)Current Sample Mode: Inductive Probe
