1. Description

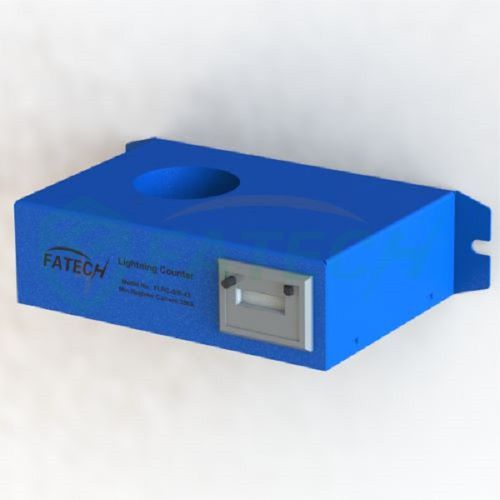

New outdoor Lightning Counter, analogue type, electromechanical 4 digits display, with reset function, no battery need. Installation window dia. 43mm. Metal plate enclosure.
2. Characteristics
1) Analogue type lightning counter.
2) 4 digits display (0~9999).
3) No need battery / power supply.
4) Sensitive response and wide lightning current measuring range.
5) Press a button and to reset the display number to "0".
6) Can be used together with all kinds of lightning protectors and equipment.
7) Indication hole dia.---43mm
3. Electrical Parameters
1) Dimension of installation window (mm): 43mm
2) Dimension of counter (mm): 110x33x82mm
3) Enclosure material: Metal Plate
4) Net weight: 0.46kg
5) Minimum Current Sensitivity (rise time ≥8μs): >350A
6) Indicator: Lightning Event 0~9999
7) Working mode: No battery / No power supply needed
8) Maximum Detectable Current (Imax): 100kA
9) Sequence of impulse: >1s
10) Current Sample Mode: Inductive Probe (Built-in)
11) Display Model: Electromechanical Counter
12) Operation temperature (℃): -20℃~+70℃
13) Reset function: Press one button to clear display number to "0"
