Liquid-cooled cold plate OSFP-RHS

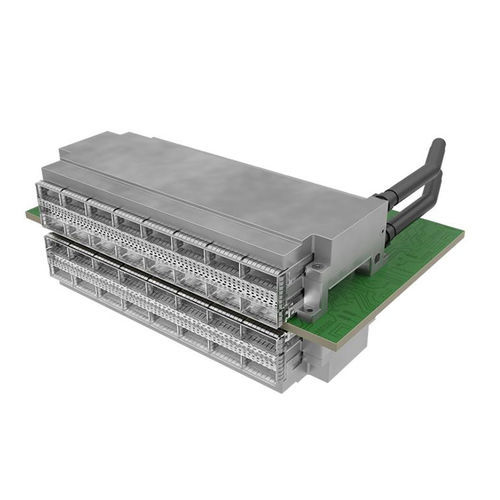

Amphenol's innovative single-component design leverages engineering expertise to optimize port thermal efficiency and reliability, meeting MSA requirements and providing a seamless one-step press assembly for our customers. The OSFP 1×N and 2×N RHS cage, featuring integrated top and bottom row cold plates with a belly-to-belly compatible screw-down mechanism, provides a simple and reliable installation method. Showcasing two cold plates managing heat efficiently across 16 ports connected in series on a ganged stacked cage. High power module thermal dissipation One step cage and cold plate press assembly One inlet/outlet minimizing system routing complexity and connections Independent spring-loaded module contact per port Compliant with OSFP,MSA and RoHS FEATURES Cooling > 40 W per module Reliable, consistent thermal performance in hot-pluggable applications Single inlet/outlet design Independent spring-loaded module contact per port Compliant with OSFP MSA and RoHS standards One-step cage and cold plate press assembly Hermetically sealed cold plates available from multiple qualified vendor sources Fluid pressure does not impact insertion/extraction force BENEFITS Efficient thermal management ensures stable module operation Maintains performance and reliability during hot-plug events Simplifies system design by reducing routing complexity and connections Improves contact stability and reliability for each port Ensures industry compliance and regulatory adherence Streamlined assembly reduces manufacturing time and cost Vendor flexibility supports supply chain resilience and cost optimization Easy insertion and extraction without added mechanical stress
