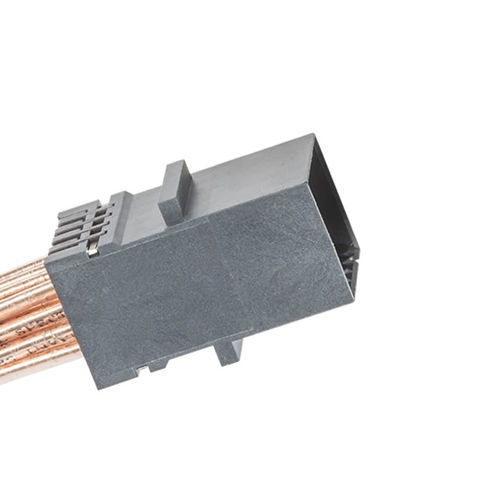

Electrical data cable Paladin® HD2

shieldedpairedmultipair

The Paladin® HD interconnect system provides world-class bandwidth from 112 Gb/s to 224 Gb/s with industry-leading density, supporting up to 144 differential pairs orthogonally within 1 RU spacing. Paladin® HD utilizes a balanced pair structure, built with individually assembled and discretely shielded differential pairs with a revolutionary hybrid board attachment for maximized density and electrical performance. Paladin® HD supports all system architectures, including backplane, orthogonal, board-to-cable, and cable-to-cable topologies. Paladin® HD's unique mating interface allows for consistent performance in a de-mated condition, critical for next-generation systems. Industry-leading SI performance supporting 224 Gb/s data rates Supports a wide range of applications supporting wire sizes up to 26 AWG for maximum performance and as small as 32 AWG to maximize density Exceptional density to maximize signal count and minimize air flow restrictions Impedance control over 1.00 mm connector de-mate Backwards compatible with Paladin® HD for a direct upgrade path FEATURES World class SI performance at 224 Gb/s Industry leading density at 224 Gb/s All system architectures supported; cables can attach to other 224 Gb/s interfaces Symmetrical mating interface Mechanically matched and electrically balanced signals within each differential pair Unique 45° differential pair interface Linear transmission through 67 GHz Mate compatible with Paladin® HD BENEFITS Maximize channel performance and cable reach for high-performing and dense applications 144 differential pairs within 1RU rack spacing orthogonally, with room for airflow
