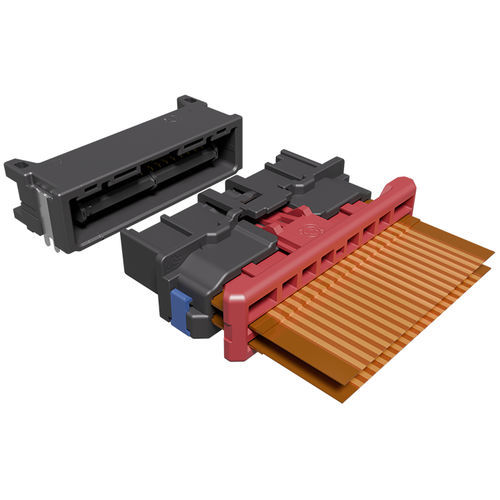

Data connector FlexFast™ ZIFwire-to-boardboard-to-boardZIF
Add to favorites
Compare this product
Characteristics
- Type
- data
- Format
- ZIF, wire-to-board, board-to-board
- Connection type
- through-hole
- Other characteristics
- for numerous mating cycles
- Voltage
100 V
- Pitch
1 mm, 1.5 mm, 1.8 mm, 2 mm
(0.039 in, 0.059 in, 0.071 in, 0.079 in)
Description
Product overview
Applications
Technical characteristics
Compatibility & installation
Ordering information
- Series: FlexFast ZIF
- Manufacturer: Amphenol
- Product type: Zero Insertion Force (ZIF) connector series for electronic interconnections
Applications
- PCB-to-cable and board-to-board connections
- Test fixtures, programming sockets and removable modules
- Prototyping and low-insertion-force mating operations
Technical characteristics
- Offered as a product series; specific pitch, contact count and configuration vary by part number
- Typical elements: ZIF actuation mechanism, multiple contact counts, various mounting styles (through-hole, surface-mount)
- Refer to Amphenol datasheet for electrical, mechanical and environmental specifications
Compatibility & installation
- Intended for repeated mating cycles with minimal insertion force
- Follow manufacturer documentation for footprint, soldering profiles and recommended torque/handling
Ordering information
- Specify FlexFast ZIF series and exact part number when contacting Amphenol or authorized distributors
- Datasheets, CAD models and configuration options are available from Amphenol for design integration
