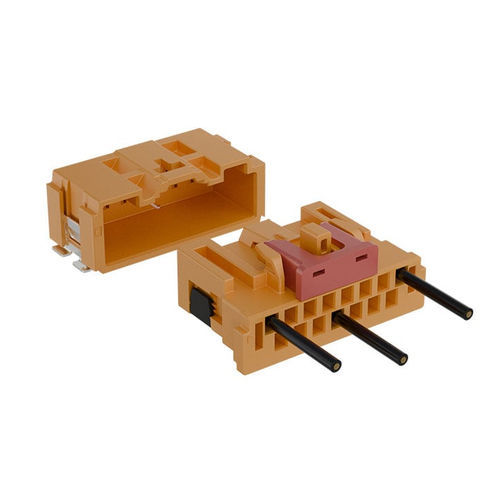

Electrical power supply connector MicroSpaceXS™

wire-to-wirecrimphigh-voltage

Amphenol's new MicroSpaceXS™ High Voltage selective loaded Crimp-to-Wire connector platform features a unique design per VW 8033 (Sev2) & USCAR-37 (V2) high voltage standards and will be available in a top-latch configuration. Compliant with VW 80332 & VW 75174 Compliant with USCAR37 & USCAR2 Compliant with IEC60664-1 Terminal Positioning Assurance (TPA) Primary and secondary contact retention Connector Positioning Assurance (CPA) FEATURES Design based on existing and proven design controls Suitable for harsh environments Existing crimp section and automated crimp tooling up to 22 AWG No specific industrial tools required 4 N normal force for vibration and >110 N connector locking strength High vibration and locking resistance Poka-Yoke polarization Visual mismatching prevention system Terminal Positioning Assurance (TPA) Ensures proper terminal insertion position and retention Current rating up to 4 A per contact Meets higher voltage performance requirements Connector Positioning Assurance (CPA) Assures that connectors are properly mated and locked together Low insertion force terminal available Makes it easier to mate with a receptacle
