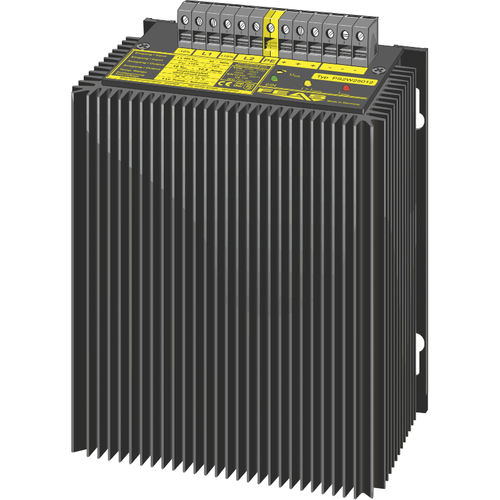

Wall-mount power supply PS2W25012

AC/DCregulatedstabilized

The power supplies of the PS2W250 series are powerful and robust devices with linear controlled output voltage. Under assistance of linear regulation transistors, the smoothed DC voltage is converted into a highly stabilized output. The disadvantage of this circuit principle is the relative high loss of energy into heat. For this reason a maximum of 30% to 50% efficiency can be obtained. Fine adjustment via potentiometer: -5% to +5% UNom Linear regulated output voltage Operating status shown by LED Parallel connection possible Short circuit proof suitable for the tropics - epoxy resin casted Output separated according to VDE 0551 Extra low safety potential PELV (EN 60204), SELV (EN 62368) Safety according to VDE, EN, UL, CSA Efficiency: - 48% Residual ripple: - < 2mV Operating temperature range: - -30°C / +70°C Dimensions (WxHxD): - 171.0 x 224.0 x 103.0 mm Weight: - 7.0 kg
