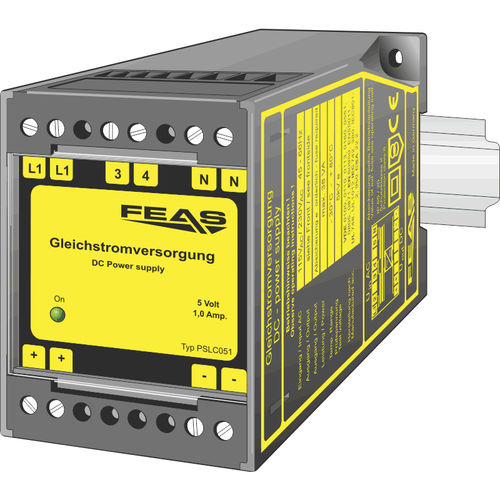

DIN rail power supply PSLC051

AC/DCsingle-outputregulated

The power supplies of the PSLC1 series are powerful and robust devices with linear controlled output voltage. Under assistance of linear regulation transistors, the smoothed DC voltage is converted into a highly stabilized output. The disadvantage of this circuit principle is the relative high loss of energy into heat. For this reason a maximum of 30% to 50% efficiency can be obtained. Linear regulated output voltage Operating status shown by LED Parallel connection possible Short circuit proof Overload- and open circuit protected Output protected against polarity reversal Suitable for the tropics - epoxy resin casted Output separated according to VDE 0551 Extra low safety potential PELV (EN 60204), SELV (EN 62368) Efficiency: - 29% Residual ripple: - < 10mV Operating temperature range: - -30°C / +80°C Dimensions (WxHxD): - 55.0 x 75.0 x 110.0 mm Weight: - 0.84 kg
