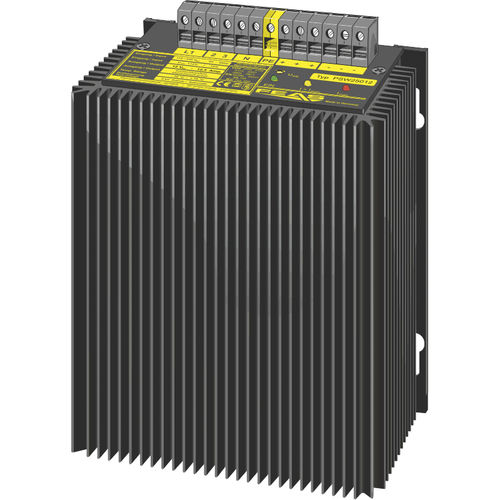

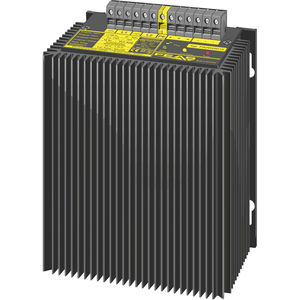

Wall-mount power supply PSW25012
AC/DCregulatedsingle-output

Wall-mount power supply - PSW25012 - FEAS GmbH - AC/DC / regulated / single-output
Wall-mount power supply - PSW25012 - FEAS GmbH - AC/DC / regulated / single-output
Wall-mount power supply - PSW25012 - FEAS GmbH - AC/DC / regulated / single-output - image - 2
Add to favorites
Compare this product
Go to the FEAS GmbH website for more information

Characteristics

Mounting / format
wall-mount
Type
AC/DC
Output
single-output, regulated, stabilized
Technology
linear
Network
single-phase
Protection
with short-circuit protection, with overload protection
Protection class
IP20, IP65
Certifications
CE
Applications
for industrial applications
Other characteristics
robust
Input voltage

115 V, 230 V

Output voltage

Max.: 12.6 V

Min.: 11.4 V

12 V

Current

12.5 A

Power

150 W

Output frequency

0 Hz

Description

The power supplies of the PSW250 series are powerful and robust devices with linear controlled output voltage. Under assistance of linear regulation transistors, the smoothed DC voltage is converted into a highly stabilized output. The disadvantage of this circuit principle is the relative high loss of energy into heat. For this reason a maximum of 30% to 50% efficiency can be obtained.

  • Linear regulated power supply
  • Low residual ripple
  • Operating status shown by LED
  • Parallel connection possible
  • Short circuit proof
  • suitable for the tropics - epoxy resin casted
  • Output separated according to VDE 0551
  • Extra low safety potential PELV (EN 60204), SELV (EN 62368)
  • Safety according to VDE, EN, UL, CSA

Adjustment range: -5% to +5% UNom
Power: 150.0 W
Efficiency: 48%
Residual ripple: < 2mV
Operating temperature range: -30°C / +70°C
Dimensions (WxHxD): 171.0 x 224.0 x 103.0 mm
Weight: 7.0 kg
