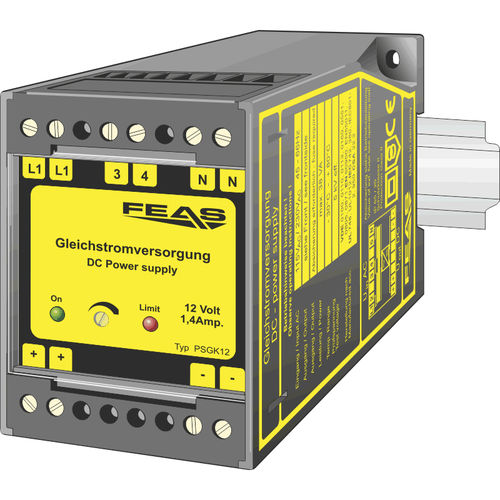

DIN rail power supply PSGK12

AC/DCsingle-outputregulated

The power supplies of the PSGK series are powerful and robust devices with linear controlled output voltage. Under assistance of linear regulation transistors, the smoothed DC voltage is converted into a highly stabilized output. The disadvantage of this circuit principle is the relative high loss of energy into heat. For this reason a maximum of 30% to 50% efficiency can be obtained. Linear regulated power supplies are ideal for sensitive electronics, measurement technology and applications requiring high noise protection. Linear regulated power supply Linear regulated output voltage Output adjustable Operating status shown by LED Parallel connection possible Short circuit proof Output protected against polarity reversal Suitable for the tropics - epoxy resin casted Output separated according to VDE 0551 Extra low safety potential PELV (EN 60204), SELV (EN 62368) Efficiency: - 42% Residual ripple: - < 2mV Operating temperature range: - -30°C / +80°C Dimensions (WxHxD): - 55.0 x 75.0 x 110.0 mm Weight: - 0.84 kg
