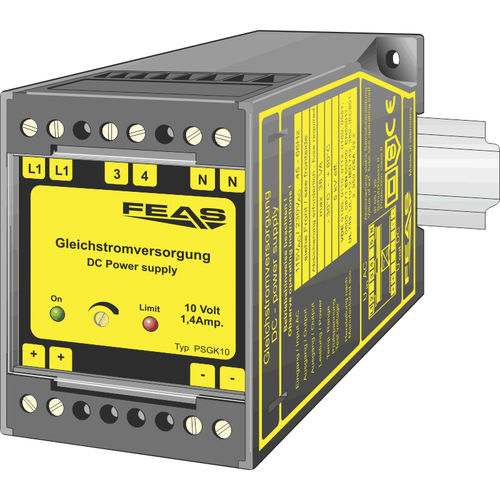

DIN rail power supply PSGK10

AC/DCsingle-outputregulated

The power supplies of the PSGK series are powerful and robust devices with linear controlled output voltage. Under assistance of linear regulation transistors, the smoothed DC voltage is converted into a highly stabilized output. The disadvantage of this circuit principle is the relative high loss of energy into heat. For this reason a maximum of 30% to 50% efficiency can be obtained. Operating status shown by LED Parallel connection possible Short circuit proof Output protected against polarity reversal Suitable for the tropics - epoxy resin casted Output separated according to VDE 0551 Extra low safety potential PELV (EN 60204), SELV (EN 60950) Safety according to VDE, EN, UL, CSA Adjustment range: - ± 5% UNom Efficiency: - 32% Residual ripple: - < 2mV Operating temperature range: - -30°C / +80°C Dimensions (WxHxD): - 55.0 x 75.0 x 110.0 mm Weight: - 0.84 kg
