Synchronizes strobe lights to 72 flashes per minute
Mounts on double-gang electrical box
UL1971 Approved for hearing impaired applications
Polarized design allows for remote supervision
Compatible with select Federal Signal model strobe lights (see chart)
Features

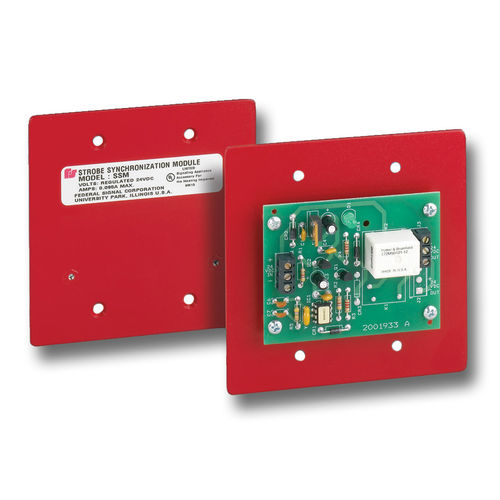

The Model SSM, Synchronous Strobe Module, is an electronic timing mechanism designed to energize select Federal Signal low in-rush 24VDC strobe lights simultaneously, while maintaining the ability to remotely supervise the strobe light circuit. This module is designed to synchronize a special series of Federal Signal strobe lights, which meet the requirement for Private-Mode Fire Alarm use, while maintaining the agency approval and environmental rating of the strobe light. The SSM is only compatible with Federal Signal brand strobe lights. See compatible models on the “How to Order” page.
The SSM enables the customer to meet local building codes through a visually appealing “single-flash” created by the simultaneous control of strobe lights connected to it. Mixed signals are reduced to a minimum as reflection of many light pulses are now viewed as one single flash.
The SSM mounts to the plaster ring of a double-gang electrical box, and requires 24VDC at all times to operate the timing circuit. Screw terminals are provided for field termination of control wiring and a maximum of three non-explosion-proof strobe lights or two explosion-proof strobe lights may be connected to each SSM. Electrically, the SSM should be mounted in the middle of the circuit,
