Compatible with 12-24VAC/DC or 120-240VAC*
3 Channels included
1: Visual only
2: Visual + tone 1
3: Visual + tone 2
Field configurable to steady or flashing mode
100,000 hour LED
Four mounting base options
Type 3R, IP65
CE Compliant
UL and cUL listed
Features

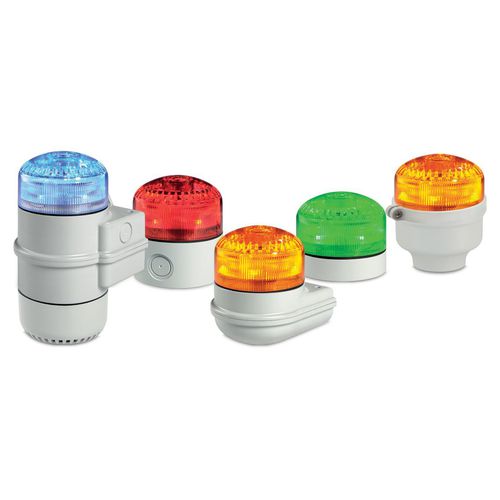

Model SLM500 is a multifunctional LED beacon and sounder combination developed with a multiple input technology that allows three separate levels of alarm (alert, pre-alarm, alarm) controllable via independent electric contacts.
Channel 1 includes a simulated strobe (triple flash) visual signal only. Channel 2 adds an audible tone, selectable from 32 tones via DIP switch, to the simulated strobe effect. Channel 3 includes a steady light and a second, unique tone selectable from 32 different toness, for a total of 64 unique tones.
The volume of a selected tone is adjustable (65-105 dBa) for the highest performing tone. Its enclosure is made from a self-extinguishing polycarbonate material with high impact and UV resistance.
