Explosion-proof beacon 27XST
strobeLED24VDC

explosion-proof beacon
explosion-proof beacon
explosion-proof beacon
explosion-proof beacon
explosion-proof beacon
explosion-proof beacon
explosion-proof beacon
explosion-proof beacon
Add to favorites
Compare this product

Characteristics

Type
strobe
Technology
LED
Voltage level
24VDC
Other characteristics
explosion-proof, amber, IP66, IP69K

Description

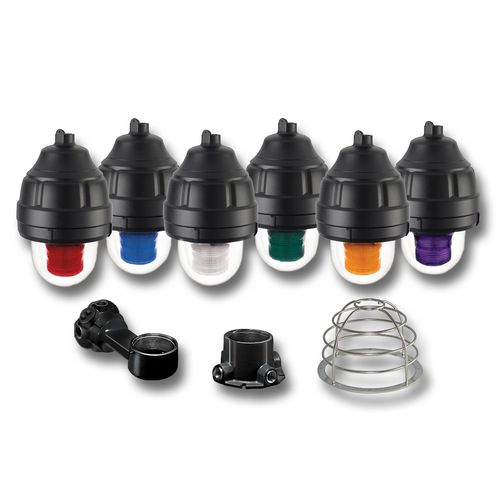

Approved for mounting in any manner - including dome up Available in 24VDC, 120VAC and 240VAC Six lamp/lens colors: Amber, Blue, Clear, Green, Magenta and Red 10,000 hour strobe tube 3/4" NPT pendant, ceiling and wall mount options available Dome guard optional Conformal Coated PCBA Type 4X, IP66 enclosure IP69K complaint Marine Rated UL and cUL Listed for Class I, Division 1 and 2, Groups C and D; Class I, Division 2, Groups A and B; Class II, Division 1, Groups E, F, and G; Class III CSFM Approved Features Federal Signal’s Model 27XST explosion-proof strobe light features a voltage in-rush limiting PCB design that provides greater compatibility with factory automation control systems and less electrical interference with in-rush sensitive devices. Federal Signal’s Model 27XST has an effective candela (ECP) of 850 and a two million peak candela. Three mounting options are available: pendant, ceiling or 90° wall mount. For easy installation, the mounting box is first installed and the fixture is then threaded onto the mounting box, making the electrical connection. Pre-install the mounting bracket, electrical continuity is made when five threads are engaged. Federal Signal’s Model 27XST is specifically designed for explosion-proof atmospheres and/or corrosive environments. Because it is easy to install and requires very low maintenance, it is ideal for use in areas such as oil rigs, mines, refineries, and chemical plants.
