Available in 10, 15 and 21 joule units

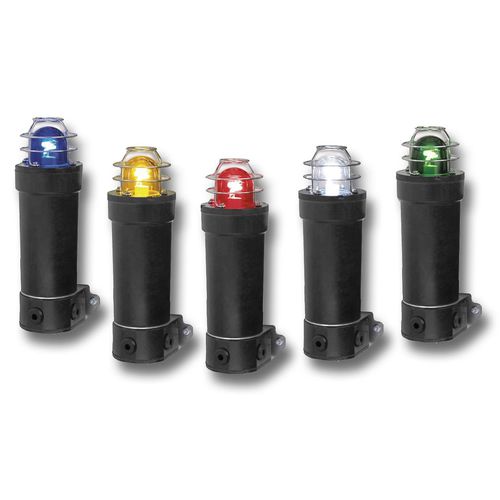

Seven lens colors: Amber, Blue, Clear, Green, Magenta, Red and Yellow
316 stainless steel mounting bracket included
Available voltages (±15%):
24- 48VDC – 15J units
110VAC – 10J/21J units
220VAC – 10J/21J units
Corrosion resistant GRP (Glass Reinforced Polyester)
Included dome guard
M20 entries standard
Strobe tube life of 10,000 hours
IP66 enclosure
Zone rated, IECEx, ATEX
Ex d IIB +H2 T3-T4
Ex de IIB +H2 T3-T4
ATEX, IECEx, CE, GOST and INMETRO Certified
Features
Model WV450X flameproof single flash strobe signal provides three high intensity light outputs utilizing a 10,000 hour rated strobe tube. The housing is manufactured from GRP (glass-reinforced polyester) to reduce weight, improve corrosion resistance and eliminate regular inspection of the flame path.
Devices include 316 stainless steel hardware, mounting bracket and dome guard. The WV450X comes standard with metric cable entries in both the “d” explosion proof version and the “de” increase safety terminal chamber with 3x M20 entries. The increased safety design allows for quick field termination and pass-through wiring.
The WV450X is ideal for the demands of offshore marine and land based heavy industrial when ATEX & IECEx certifications are required.
