Available in 1830VDC
Fully integrated xenon strobe circuit
Five dome colors Amber, Blue, Clear, Green, Red
Heavy duty ABS plastic body
82100dB @ 10' (92110dB @ 1m)
Type 4X, IP54 (IP65 with optional deep base)

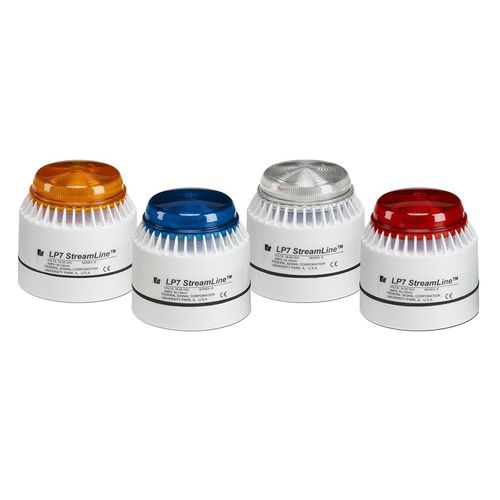

LP7 sounder/strobe combines the features of a mini sounder with a fully integrated xenon strobe circuit.
Operating voltage ranges from 18-28VDC with an average of only 68 mA current consumption.
The LP7 has two switchable tone patterns: “Sweeping” and “Continuous”. The LP7 has a range of 82-100 dBa @ 10 feet (92-110 dBa @ 1m), dependent upon tone selected. Volume control is set by DIP switch, which allows for 20 dBa of adjustment.
The LP7 features a bright xenon strobe that produces 0.7 joules of flash energy with a flash frequency of 60 flashes per minute. The beacon will operate jointly with any tone selected.
The Federal Signal Model LP7 sounder/strobe is PLC compatible. It is ideal for wall or panel mount applications where low voltage is required.
