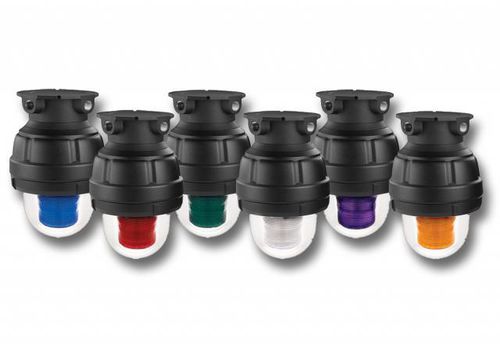

Strobe beacon 24XST

strobe beacon
strobe beacon
strobe beacon
strobe beacon
strobe beacon
strobe beacon
strobe beacon
Add to favorites
Compare this product

Characteristics

Type
strobe

Description

Approved for mounting in any manner including dome up Available in 24VDC Six lens colors 10,000 hour strobe tube Ceiling mount standard; other options available Dome guard optional Type 4X, IP66 enclosure Marine Rated UL and cUL Listed The Federal Signal Model 24XST Explosion Proof Strobe Light produces 60 high-intensity flashes per minute. This model is unique to the market because it covers an entire range of possible mounting configurations including dome up. The 24XST is UL Listed for Class 1, Division 1 & 2, Groups C & D; Class 1, Division 2, Groups A, B; Class II, Division 1, Groups E, F & G; and Class III, and is Type 4X and IP66 rated. The 24XST features a current in-rush limiting PCB design to provide improved compatibility with inrush sensitive devices. This design limits the peak In-rush to 2A and operates on only 0.71A, when powered by 24VDC. To synchronize strobe lights purchase the Synchronization Module (SSM) separately. The 24XST is supplied with a ceiling mount. Pendant mount and wall mount are optional. The installation process is simple and can be achieved by a single person. The mounting box is installed and the fixture is then threaded onto the mounting box, making an electrical connection when the threads are engaged. The heavy duty, copper free cast aluminum housing is sealed with a black powder coat paint. Federal Signal's Model 24XST is specifically designed for explosion-proof atmospheres and/or corrosive environments. Because it is easy to install and requires very low maintenance, it is ideal for use in areas such as oil rigs, mines, refineries, and chemical plants.
