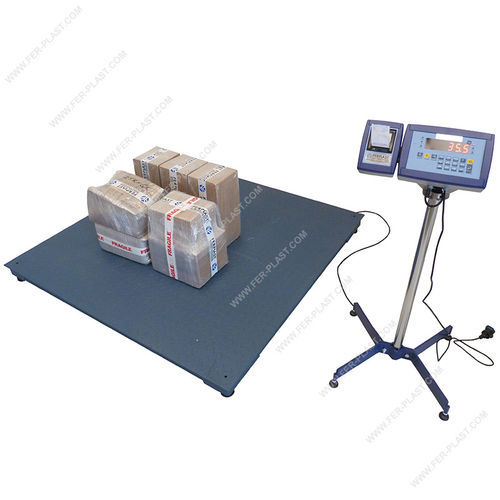

Commercial scale FPFL series

electronicplatforminternal

Monobloc electronic weighing platforms from the floor, simple, inexpensive and reliable. CE-M approvable.FLOOR SCALES "FLOOR" SERIES FPFL - WEIGHT INDICATOR EXCLUDEDThe FLOOR series scales are normally used in industrial and commercial areas of all kinds for weighing pallets, boxes or packages. They can be installed in the floor or on already existing packaging lines. The scales are available in standard version or with approved CE-M load cells for sale to third parties.TECHNICAL FEATURES PLATFORM WEIGHING· Fitted with 4 shear-beam load cells of 350 ohm nickel-plated steel, approved according to OIML R60 C3 standards (3000 divisions), IP67 protection.· Monoblock tubular oven-painted steel, with adjustable resting feet and level.· Lobed fixed load floor, sheet steel.· Power Max. 15 Vdc.· Hermetic junction box, IP67 wiring with 3m shielded cable for connection to the indicator.Technical SpecificationsCodeDimensionsLoad max kgDivision standard grDivision CE-M gr (*)FPFLA 6001000x1000x120 mm600200200FPFLA 15001000x1000x120 mm600/1500200/500500FPFLM 6001000x1250x120 mm600200200FPFLM 15001000x1250x120 mm600/1500200/500500FPFLB 6001250x1250x120 mm600200200FPFLB 15001250x1250x120 mm600/1500200/500500FPFLD 15001250x1500x120 mm1500500500FPFLD 30001250x1500x120 mm1500/3000500/10001000FPFLE 15001500x1500x120 mm1500500500FPFLE 30001500x1500x120 mm1500/3000500/10001000(*) CE-M scale divisions (approved) obtainable only with the relative options, together with our indicators.WEIGHT INDICATORS:Weight indicators can be placed on the floor, hung on the wall or placed on the support column.- FPDFWL base weight indicatorFPDFWL BASE indicators with 5-key functional waterproof keypad, 25 mm high-contrast backlit LCD display with 6 digits and icons for indicating active functions. Thanks to the ABS IP54 casing, they are easy to clean and resistant to harsh and corrosive environments.- FPDFWKPXP weight indicator - integrated printerWeight indicators with 17-key numeric-functional waterproof keypad with 25 mm backlit LCD display. with 6 high contrast digits with icons for indicating active functions. Integrated thermal printer and calendar clock. The IP65 ABS waterproof casing is easy to clean and durable, suitable for weighing in harsh and corrosive environments.- FPDFWDXT weight indicatorWeight indicator with large 40 mm display with high brightness red LEDs, suitable for viewing from any angle and from a great distance. Equipped with a stainless steel casing with IP68 protection rating against rain and dust, easy to clean and resistant to harsh and corrosive environments.- FPDFWLIP stainless steel weight indicatorIP68 stainless steel weight indicator equipped with 5-key functional keyboard with 40 mm backlit color LCD display. with 6 high contrast digits and icons for indicating active functions. Ideal for applications in damp and heavy environments and in combination with stainless steel scales. With internal power supply.Thermal adhesive paper for printer:Box of 50 rolls of adhesive thermal paper of 15 m / each.Width 57 mm, hole 18 mm, external diameter 50 mm - Minimum order unit price 1 box of 50 pieces.OPTIONAL:- Support column for weight indicators- Stainless steel support column for weight indicators- CE-M approval for sales to third partiesMonobloc electronic weighing platformsCE-M approvable4 shear-beam load cells, OIML R60 C3, IP67Oven-painted steel structureAdjustable feet and levelHermetic junction box, IP67, 3m shielded cableMultiple platform sizes and capacities (see table)Weight indicators: FPDFWL, FPDFWKPXP (with printer), FPDFWDXT, FPDFWLIP (stainless steel)Optional: support columns, CE-M approval
