Digital weighing bar FPPMB series

stainless steelIP65corrosion-resistant

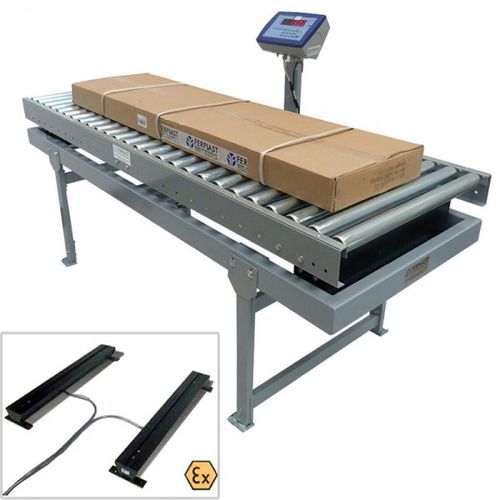

WEIGHING BARS FPPMB SERIES - INDICATOR EXCLUDED Pair of weighing bars suitable for weighing boxes or pallets such as hoppers, conveyor belts, roller conveyors, tanks, crates, etc. They can be applied in packaging lines for weighing boxes and pallets pre-filled with material. CE-M verifiable standard version for sale to third parties. The price indicated refers only to weighing bars. The photos are purely indicative and show the various applications of the bars. TECHNICAL FEATURES - Functioning with 4 shear-beam approved IP68 stainless steel load cells (PMBL) and with 2 approved off-center aluminum load cells (PMBS-PMBM-PMBX), according to OIML R60 standards with protection against dust and humidity according to IP65 standards (350 Ohm input resistance) - Structure made of profiles and carbon steel sheet oven-painted and complete with articulated joints for compensation of bending and / or expansion of the structure to be weighed and end of stroke against accidental impacts - Shielded 4-pole 3 m cable for connecting each bar to the supplied junction box - Max. Power supply 15Vdc - IP67 hermetically sealed junction box with 5-m shielded 6-core cable. complete with connectors for connection to the indicator - The STAINLESS STEEL version is made of AISI 304 stainless steel and load cells treated with corrosion protection.
