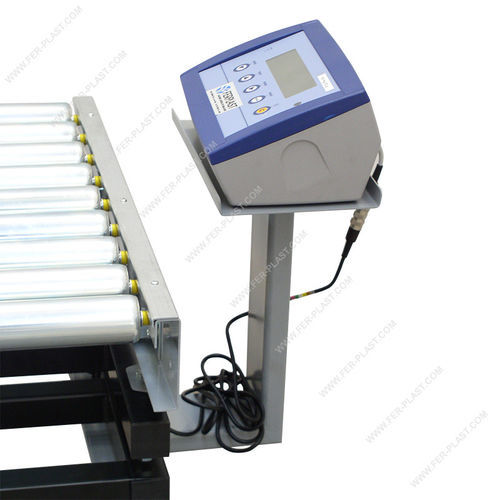

Digital weight indicator FPDFWXP

LED displayLCD displaybenchtop

High performance weight indicators for industrial and commercial weighing.MULTIFUNCTION WEIGHT INDICATORS FPDFWXP - IP65Versatile, high-performance weight indicators. Equipped with a wide range of different modes and interfaces, they are suitable for any type of industrial or commercial application. CE-M homologable (OIML R-76 / EN 45501).Available in the following models:FPDFWXP: indicator with 5-key keypad with backlit LCD display.FPDFWKXP: indicator with 17-key keypad, with backlit LCD display.FPDFWKPXP: indicator with 17-key keyboard with integrated thermal printer and calendar clock, backlit LCD display.TECHNICAL FEATURES- Waterproof and functional keyboard with 5 keys or numeric-functional with 17 keys, with indications for quick recall of the main functions and settings.- 25mm backlit LCD display with 6 high contrast digits and icons for indicating active functions.- Waterproof IP65 ABS case, easy to clean and resistant to harsh and corrosive environments (IP40 on version with thermal printer).- Dimensions: 278x186x125mm.- Suitable for use on a bench, column or wall.- 24 bit A/D converter, 4 channels, max.200 conv./sec. autoselect and up to 8 signal linearization points.- Max. 10,000e or 3 x 3000e @ 0.3 µV / d multi-range in CE-M approved version for legal use in relation to third parties.- Max. 1,000,000 divisions displayable with internal resolution up to 3,000,000 points.- Digital calibration and Set-Up from keyboard or PC.- Power supply: internal rechargeable battery (60 hours with a 350 Ohm cell) and internal power supply 110-240 Vac.- Connection to max. 8 load cells with 350 Ohm input resistance or max. 16 cells at 700 ohms.SELECTABLE FUNCTIONSHigh resolution x 10 display, precision weighing with temporary recalibration using sample weight (for internal factory use), Net/Gross, lb/kg conversion, free conversion factor (for meters count systems, liter counts etc), weight totalization, Formulation, +/- Control, with rapid insertion of targets and thresholds, Percentage weighing, Dosing in percentage with programmable target, Piece counting, HoldI/O SECTIONConfigurable RS232/C bidirectional port for connection to printer/labeller, or for attached printer.Bidirectional RS232/C port (in option RS485) configurable for PC, PLC, additional remote display or radio modem.RJ connector for quick connection.IR input available only for models with simplified 5-key keypad.KEYBOARD FUNCTIONS: Zeroing, Automatic tare, Presettable tare, printing and/or data transmission, selected function command, on/off, light intensity adjustment, quick selection of the operating mode, access to the user menu.17-key version: Archive of 30 tares, 2 numeric IDs, keypad lock, repetition of the last print performed, rapid target entry, PMU, thresholds and setpoint.PRINT FUNCTIONS: Configurable print layout with:- Gross-Tare-Net and receipt number- Date and time (only with calendar/clock)- Printing of 39 barcode for LP542S labeller or OBTPR printer.REMOTE CONTROL FUNCTIONS OPTIONAL:Radiofrequency remote control with 6 keys: zero; Tare; activate / deactivate function; printing; shutdown.19-key infrared remote control: zero, manual tare / tare, enable / disable function, print, switch off (IR input available only for models with simplified 5-key keypad).OPTIONS ONLY AVAILABLE AT TIME OF ORDERColumn for weight indicatorsThermal printerTraffic light option box (2 DFIOs required) with 3-way traffic light with programmable acoustic signal, bar graph controller for FPDFWXP indicators. The traffic light box allows the management of 3 luminous zones and the buzzer, independently, using the TTL logic.Radio modem option boxAlibi memory with calendar clockUSB / RS485 / Ethernet / WI-FI / Bluetooth interfaceDFIO interface with 2 inputs + 2 outputsAnalog output with 16 bit D / A converterRadio frequency remote control and receiver. 433MHz, with 6 buttons, for use up to 50 m away, in appropriate environmental conditions19-key remote control and infrared receiverWeight repeater with 100mm LED display. IP68 stainless steel case, 5-key keypad, valve for regulating humidity and pressure.CE-M approval for sales to third partiesATEX approval for operation in potentially explosive environments (on request).In ATEX systems, for the direct weighing of light metals (aluminum, magnesium, titanium and their alloys) it is necessary that the top of the structure installed above the bars is made of stainless steel.Models: FPDFWXP (5-key keypad), FPDFWKXP (17-key keypad), FPDFWKPXP (17-key keypad with printer/calendar clock)Display: 25mm backlit LCD, 6 digitsCase: IP65 ABS (IP40 with printer)Dimensions: 278x186x125mmPower: Internal rechargeable battery, 110-240 VacMax load cells: 8 (350 Ohm) or 16 (700 Ohm)Selectable functions: High resolution, Net/Gross, lb/kg, totalization, formulation, +/- control, percentage weighing, dosing, piece counting, holdI/O: RS232/C, RS485 (option), RJ connector, IR input (5-key only)Keyboard: Zeroing, tare, print, function selection, menu access, 17-key version adds archive, IDs, lock, print repeat, target entryPrint: Configurable layout, barcode, date/time (with clock)Remote: Optional radio/IR remote controlsOptions: Column, printer, traffic light, radio modem, memory, USB/RS485/Ethernet/WI-FI/Bluetooth, DFIO, analog output, weight repeater, approvals
