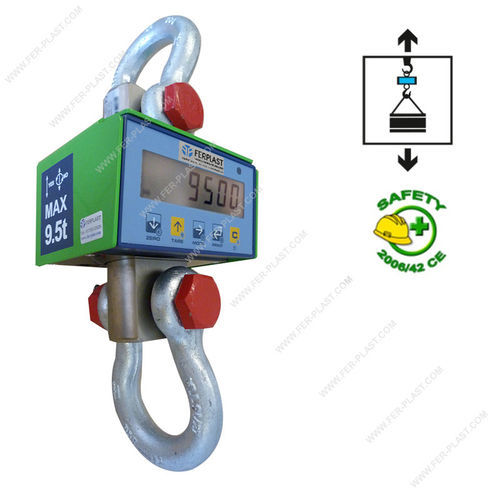

Digital dynamometer FPMCWN series

portablecompactBluetooth

FPMCWN DYNAMOMETERS - FOR LIFTING AND WEIGHINGProfessional digital dynamometers for weighing with cranes in industrial environments. Simple and reliable, thanks to their compact dimensions, they slightly increase the lifting distance between the crane used and the goods. They are supplied with a protective carrying case. Also available in CE-M APPROVED version.All models can be equipped with the 868MHz radio frequency module which allows communication between dynamometers and PCs, weight indicators and weight repeaters.NOTE: All the versions are supplied with a calibration certificate, performed with sample weights on the whole capacity.MAIN FEATURESSingle safety, for lifting the load and weighing.Conform to the directives 2006/42 CE, UNI EN 13155/2009, UNI EN 13889, 2014/30 / EU.Upper and lower shackle as standard: GR3 for FPMCWNT1, GR6 for FPMCWNT3, GR6 for FPMCWNT6 and GR9 for FPMCWNT9Compact dimensions, minimum distance between upper and lower shackles25 mm backlit LCD display, clearly visible in all lighting conditionsAccuracy 0.03% of F.S.5-key waterproof keyboard: Zero, Semiautomatic or preset Tare, Mode, Print, On / OffSturdy structure in painted steelStandard infrared remote control for use up to 8 m away. The remote control can be configured by the customer as only automatic tare or as a remote keypad;Power supply via 4 AA batteries, 40 hours (without radiofrequency module), or in continuous cycle with rechargeable AA batteries (not included in the supply).Digital calibration and programmable Set-Up directly from keyboard or PC;Programmable digital filter and auto switch-off;Operating temperatures: -10 / + 40 ºC;RS232 serial port on RJ11 connector for quick programming;Protective carrying case for transport, as standard; dim. (WxLxH) 175x480x390mm.SELECTABLE FUNCTIONS- High resolution x 10 display- Precision weighing with temporary recalibration by sample weight (for internal factory use)- Net / Gross- lb / kg conversion- Free conversion factor (for meters count systems, liter counts etc)- Weight totalization- Formulation- +/- control, with rapid insertion of targets and thresholds- Percentage weighing- Dosage in percentage with programmable target- Piece counter- Hold- Two-speed filling / dosing with start-up reset (with optional DFIO)- PEAK, detection of weight peaks- Newton-kg conversionCodeLoad max kgStandard Division kgDivision CE-M kgFPMCWNT1300/600/15000.1/0.2/0.5--FPMCWNT1M1500--0.5FPMCWNT3600/1500/30000.2/0.5/1--FPMCWNT3M3000--1FPMCWNT61500/3000/60000.5/1/2--FPMCWNT6M6000--2FPMCWNT93000/6000/95001/2/5--FPMCWNT9M9000--5AVAILABLE AT TIME OF ORDERExternal 868MHz radio module for PC, with USB cable l = 1m. Direct power supply from the USB port.Standard weight indicator or with integral printer (to be equipped with 868 MHz radio module)Weight repeater with 100mm LED display - IP68 stainless steel (to be equipped with 868 MHz radio module)Wireless portable weight repeater complete with integrated radiofrequency moduleRadio frequency weight repeaterInternal Bluetooth interfaceCalendar clockAlibi memoryProfessional digital dynamometers for cranes, for weighing in industrial environments, capacity from Kg. 300 to 9500.Technical Specifications / FeaturesProduct: FPMCWN DynamometersType: Digital dynamometers for cranesCapacity: 300 to 9500 kg (depending on model)Accuracy: 0.03% of F.S.Display: 25 mm backlit LCDPower: 4 AA batteries (40h without RF module) or rechargeable AA (not included)Remote control: Infrared, up to 8 mOperating temperature: -10 / +40 ºCRS232 serial port (RJ11)Protective carrying case includedCE-M approved versions availableSelectable functions: High resolution, net/gross, lb/kg, totalization, piece counter, hold, peak, etc.Conformity: 2006/42 CE, UNI EN 13155/2009, UNI EN 13889, 2014/30 / EU
