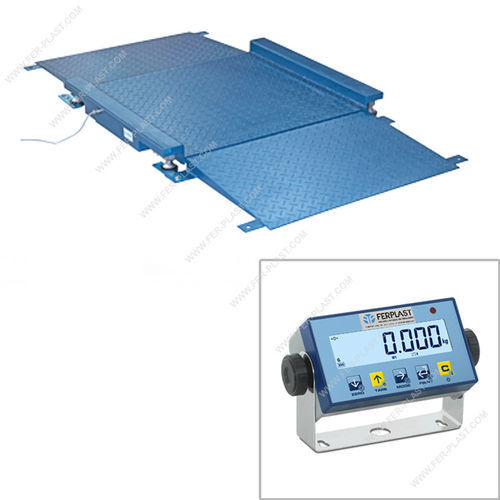

Low-profile platform scale FPL series

beamsteelwaterproof

Low-profile platforms with up/down ramp on both sides. CE-M approvable.FLOOR SCALES WITH LOADING RAMPS FPL SERIES WITH LOW PROFILE - INDICATOR EXCLUDEDLow profile platforms, with embossed steel frame and ramps in painted steel. They are suitable for weighing trolleys and pallet trucks as they are equipped with loading/unloading ramps and side rails on the weighing platform. Available in standard or CE-M approved versionTechnical Features- Operation with 4 350 Ohm shear-beam load cells in nickel-plated steel, approved according to OIML R60 C3 standards (3000 divisions), IP67 protection degree.- Structure and loading surface embossed in steel, oven painted, RAL 5007 blue color.- Adjustable anti-shock adjustable feet and level bubble.- Power supply from 5 to 15 Vdc.- Hermetic junction box, IP67 wiring with 5m shielded cable for connection to the indicator.- Side rails and double ramp up/down, standard. CodeDimensions (LxPxH)Load max kgStandard division gCE-M division g FPLC800x800x52 mm600200200 FPLA1000x1250x52 mm1500 500500 FPLB1250x1500x52 mm2000 10001000(*) CE-M divisions obtainable only with the relative options, combined with our indicators.OPTIONAL:Weight indicators can be placed on the floor, hung on the wall or placed on the support column.- FPDFWL base weight indicatorFPDFWL BASE indicators with 5-key functional waterproof keypad, 25 mm high-contrast backlit LCD display with 6 digits and icons for indicating active functions. Thanks to the ABS IP54 casing, they are easy to clean and resistant to harsh and corrosive environments.- FPDFWKPXP weight indicator - integrated printerWeight indicators with 17-key numeric-functional waterproof keypad with 25 mm backlit LCD display. with 6 high contrast digits with icons for indicating active functions. Integrated thermal printer and calendar clock.The IP65 ABS waterproof casing is easy to clean and durable, suitable for weighing in harsh and corrosive environments.- Support column for weight indicators- CE-M approval for sales to third partiesLow-profile platforms with up/down ramp on both sidesCE-M approvableEmbossed steel frame and ramps in painted steelSuitable for weighing trolleys and pallet trucksEquipped with loading/unloading ramps and side railsOperation with 4 350 Ohm shear-beam load cells in nickel-plated steelOIML R60 C3 standards (3000 divisions), IP67 protection degreeStructure and loading surface oven painted, RAL 5007 blue colorAdjustable anti-shock feet and level bubblePower supply from 5 to 15 VdcHermetic junction box, IP67 wiring with 5m shielded cableSide rails and double ramp up/down, standardOptional weight indicators: FPDFWL base, FPDFWKPXP with printerOptional support column for indicatorsOptional CE-M approval for sales to third parties
