Inkjet marking and coding device FPA2-SMART

for labelsfor cardboard boxesfor production lines

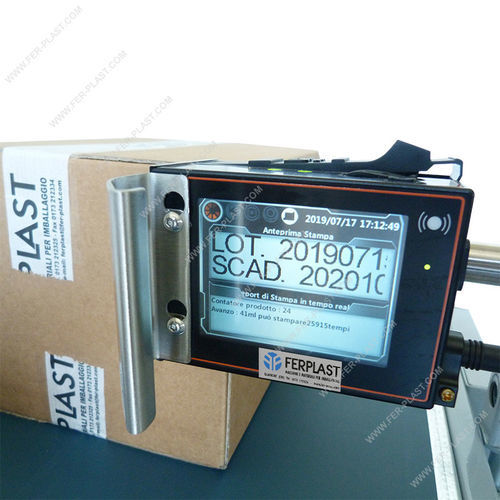

The SMART inkjet marker is the simplest professional model in the series. It allows printing up to 12.7 mm on porous surfaces such as boxes and cases. It supports alphanumeric texts, logos, date/time, codes, counters, lots, and 1D & 2D barcodes, with a total height of 12.7 mm. The minimum printing height is about 5.4 mm. The marking speed can be set directly on the marker keypad, ensuring precise writing without character deformation. The cartridges are durable, lasting tens of thousands of markings without maintenance. They remain functional even after being left uncovered for weeks. The marker includes an automatic nozzle cleaning system. With the included SD card, you can save up to 999 messages, setting them in any size (maximum 12.7 mm) and any Word font format. Logos, barcodes, and images can also be saved via PC. The marker comes with adjustable fixing brackets, ready for easy installation on packaging lines, taping machines, and conveyor belts. It can be installed with the print head facing horizontally or vertically downwards, allowing printing on the side or top of the product. The built-in photocell detects the product passage and starts printing. Print speed and position are easily settable by panel. TECHNICAL FEATURES: - Simple interface - 3.5-inch LCD screen with LED backlighting - Pocket IR remote keyboard - Dustproof design - Anti-shock protection - Ink cartridge design eliminates maintenance - Automatic ink usage detection - USB 2.0 compatible - Multiple functions including software update and data backup - 18 settable languages The print head is positioned approximately 1.5 cm from the base. The distance between the printing area and the base must be at least 1.5 cm. OPTIONAL: - Encoder for high-quality printing - Photocell for better detection - Alarm kit for operator alerts - Additional support bracket for top marking INCLUDES MOUNTING BRACKETS: - 1 perforated plate - 3 steel rods for precise adjustment The marker can be ordered with other equipment, but samples must be sent for installation and testing. Installation costs are not included.
