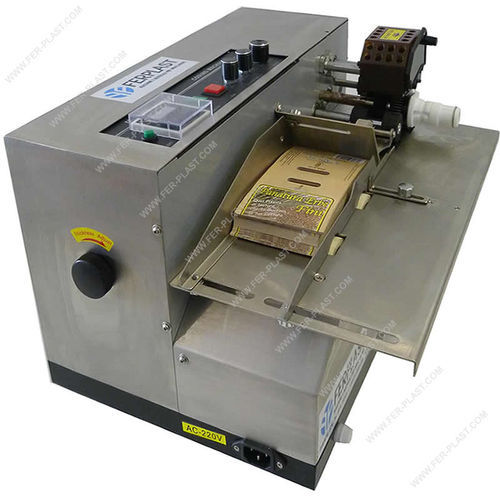

Roll marking machine FPMR 380

hotfor aluminumpaper

Automatic rotary marker for hot foil print on labels and cases. FPMR 380 AUTOMATIC ROTARY MARKER WITH SOLID INK ROLLER (Complete with device for gathering and packaging printed labels) Automatic rotary marker with feeder for hot stamping on paper, plastic, aluminum sheets, etc. Uses the proven technology of solid ink rollers; ink is activated by heating and drying, allowing immediate and indelible impression on all printable products. The product is placed in an adjustable charger, the feeder picks individually the object to be printed and flat belts carry it under the roller printer. The print position can be adjusted to the millimeter by two photocells and timer. The number of pieces to be printed is programmed from the keypad. Use numbers and letters (see table) for printing production date, expiration date, lot number, etc. to preserve the traceability of the product. Particularly suitable for medium/high production in the food industry and wherever there is the need to give dates on labels. - Model: FPMR 380 - Print speed: 60-120 pieces/minute - Case/box length: 55-300 mm - Case/box width: 50-160 mm - Power supply: 220V - Power consumption: 180 W - Machine size: 440 x 435 x 300 mm - Weight: 23 kg The marker is provided complete with 1 kit of numerical characters (choose between 2 mm and 3 mm). The choice is to be specified when ordering. If not specified, one of the two will be supplied at random. The characters included in the numerical kit are those in the tables below (mostly numerical). You can order more character boxes or, if you need to write letters in the lot, add the alphabetical AZ kit (2 or 3 mm). Characters kit 2 mm (CODE FPMR 300) - 0: 12 - 1: 10 - 2: 8 - 3: 4 - 4: 4 - 5: 4 - 6: 4 - 7: 4 - 8: 4 - 9: 4 - D: 1 - E: 1 - F: 1 - L: 1 - M: 1 - O (Letter): 1 - P: 1 - T: 1 - X: 1 Characters kit 3 mm (CODE FPMR 380) - 0: 10 - 1: 8 - 2: 6 - 3: 4 - 4: 4 - 5: 4 - 6: 4 - 7: 4 - 8: 4 - 9: 4 - D: 2 - E: 2 - F: 2 - L: 2 - M: 2 - O (Letter): 2 - P: 2 - T: 2 - X: 2 The marker uses solid ink rollers. About 20,000 markings can be made with each roll. The duration of the roll depends on the number of characters imprinted, on the force of impression applied, and on the set temperature. Optional - Alphabetic AZ kit: In the alphabetical AZ kit there is 1 letter by type (including W and Y). - Edit to print erecting cartons: The marker is suitable for printing on boxes and standard cards. To print on erecting cartons (thicker than standard) it is necessary to make changes as the great thickness could jam during printing. All changes are performed specifically as a result of the test on the customer's samples.
