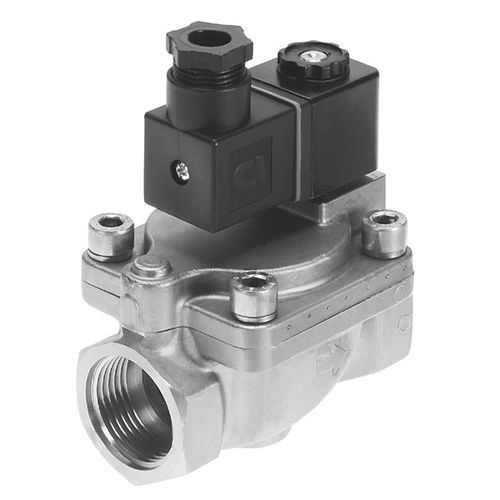

Pilot-operated solenoid valve VZWM series 2-wayNCfor water
Add to favorites
Compare this product
Characteristics
- Control
- pilot-operated
- Ports/positions
- 2-way
- Function
- NC
- Medium
- for water, for gas, oil
- Body
- IP65, stainless steel, brass
- Process connection
- G 1/4, G 1/2, G 3/4, G 1, G 3/8, G 1 1/4
- Other characteristics
- electrically-operated, universal, corrosion-resistant, plug, membrane, spring-return
- DN
Max.: 50 mm
(1.969 in)Min.: 13 mm
(0.512 in)- Voltage
24 V, 110 V, 230 V
- Temperature
Max.: 60 °C
(140 °F)Min.: -10 °C
(14 °F)- Pressure
Max.: 10 bar
(145 psi)Min.: 0.5 bar
(7.3 psi)
Description
The poppet valve with diaphragm seal for control of air or water is suitable for all-purpose use with either medium.
• Brass or stainless steel casting design
• Electrical connection via solenoid armature tube
• Wide range of coils
• Coil can be ordered separately
• Indirectly actuated poppet valve
with diaphragm seal
• Pipe connection G14 … G2
• Flow rate 1400 … 31000 l/min
• Available in brass or stainless steel casting
• Wide range of coils
