Ball valve VZBD
manualpneumaticfor control

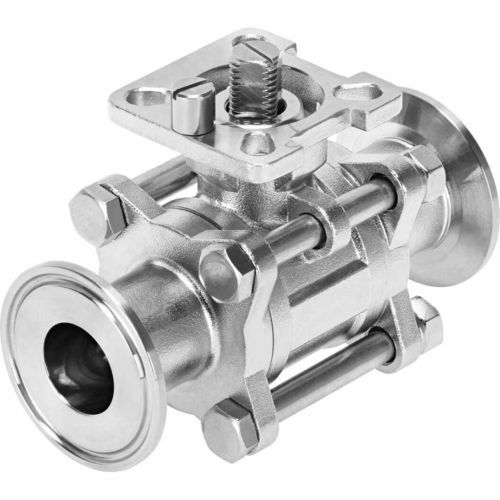

Ball valve - VZBD - FESTO - manual / pneumatic / for control
Ball valve - VZBD - FESTO - manual / pneumatic / for control
Ball valve - VZBD - FESTO - manual / pneumatic / for control - image - 2
Add to favorites
Compare this product
Go to the FESTO website for more information

Characteristics

Type
ball
Operation
manual, pneumatic
Function
for control, shut-off, purge
Media
for water, for oil, beverage, for hydrocarbons, for gas, for steam, for compressed air, for CO2, for inert gases, propane
Body
with ISO flange connections, with actuator flange, weld, 3-piece, in-line, rugged, ATEX
Applications
for refrigeration, for industrial applications, for the chemical industry, for water purification systems, for hazardous environments, for explosive areas, ISO base, process, for pipelines, actuator, for pipes, for vacuum, hygienic, for pneumatic cylinders, sanitary, for powders
Material
stainless steel
Number of channels
2/2-way, 2-way
Other characteristics
DIN, ISO, ANSI, with lockable toggle, piggable, locking, quarter-turn, ATEX, high-performance, for explosive atmospheres, with tri-clamp connection, anti-static, heavy-duty, for corrosive environments, with seal, chemical-resistant, with butt weld ends, waterproof
DN

Max.: 100 mm
(3.937 in)

Min.: 15 mm
(0.591 in)

Pressure

16 bar
(232.1 psi)

Temperature

Max.: 200 °C
(392 °F)

Min.: -20 °C
(-4 °F)

Flow rate

Max.: 436.3 m³/h
(15,407.79 ft³/h)

Min.: 3.5 m³/h
(123.6 ft³/h)

Description

The 2-way stainless-steel ball valve is the ideal partner for the pharmaceutical and cosmetics industry. Its sealing is compliant with FDA standards, and it has electropolished surfaces, long welded ends, or clamping sleeves. • Electropolished surfaces SFV4 • PTFE seal with only little dead space • The high-performance ball valve for the pharmaceutical and cosmetics industry • FDA-compliant seal to FDA 21 CFR 177.1550

Catalogs

VZBD
VZBD
57 Pages
VAPB
VAPB
57 Pages
VZBA
VZBA
57 Pages
