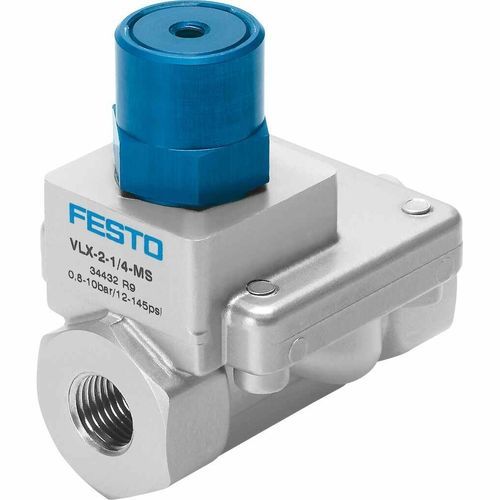

Diaphragm valve VLX pneumaticfor controlfor compressed air
Add to favorites
Compare this product
Characteristics
- Type
- diaphragm
- Operation
- pneumatic
- Function
- for control
- Media
- for compressed air
- Body
- threaded, in-line
- Applications
- for industrial applications
- Material
- brass
- Number of channels
- 2/2-way
- Other characteristics
- normally closed, actuated
- DN
13 mm, 20 mm, 25 mm
(0.512 in, 0.787 in, 0.984 in)- Pressure
Max.: 10 bar
(145 psi)Min.: 1 bar
(14.5 psi)- Temperature
Max.: 60 °C
(140 °F)Min.: -10 °C
(14 °F)- Flow rate
2,400 l/min, 3,800 l/min, 4,000 l/min, 10,500 l/min, 14,000 l/min
(634.01 us gal/min, 1,003.85 us gal/min, 1,056.69 us gal/min, 2,773.81 us gal/min, 3,698.41 us gal/min)
Description
• Poppet valve
• Indirectly actuated
• Brass design
• In-line mounting
• Poppet valve, indirectly actuated with diaphragm control
Catalogs
VLX
6 Pages
