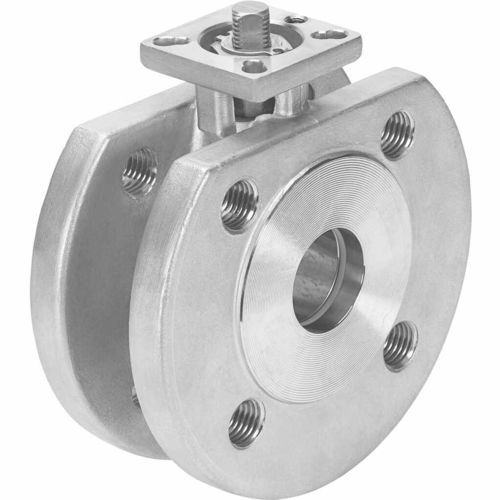

Ball valve VZBC manualfor controlfor water
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- manual
- Function
- for control
- Media
- for water, for gas, for compressed air, for natural gas, for inert gases
- Body
- with ISO flange connections
- Applications
- for industrial applications, for process applications, for pipelines, for the gas industry, for pipes
- Material
- stainless steel
- Number of channels
- 2-way
- Fluid specification
- for corrosive fluids
- Other characteristics
- compact, bidirectional
- DN
Max.: 100 mm
(3.937 in)Min.: 15 mm
(0.591 in)- Pressure
40 bar
(580.2 psi)- Temperature
Max.: 200 °C
(392 °F)Min.: -10 °C
(14 °F)- Flow rate
Max.: 1,414 m³/h
(49,934.94 ft³/h)Min.: 19.4 m³/h
(685.1 ft³/h)
Description
the automatable, compact, flanged, 2-way ball valve for control of media.
• Automatable 2-way ball valve with compact flange
• Stainless steel design
• Short installed length
• Blow-out proof shaft
• Manual operation possible using hand lever
• Flange to DIN 1092-1
• Mounting flange to ISO 5211
• Use in zone 1, 21, 2, 22
