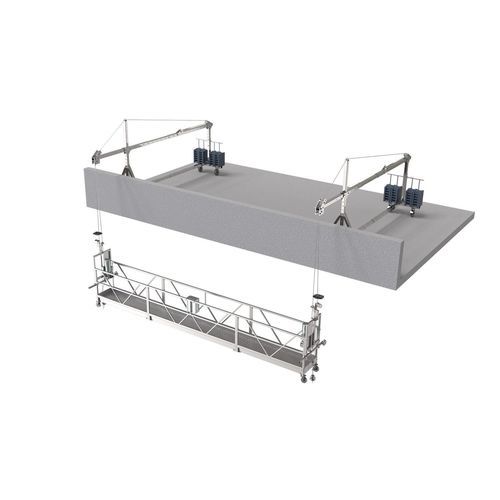

Cradle XP

OverviewSuspended platform XP Series uses time-tested technology and provides a strong safety margin for reliable high-altitude operations. The design is straightforward with durable components and a modular layout to adapt to varied project configurations.

Features

• Proven technology with substantial safety margin
• Simplified structural design for on-site handling
• Durable components to reduce failure risk
• Modular construction allowing multiple platform configurations

Advantages

• Complies with rigorous safety and quality standards
• CE certificate
• Low-maintenance design
• Adjustable length to suit different job sites

Benefits

• Flexible adaptation across project types
• Improved safety for personnel at height
• Higher on-site productivity
• Reduced installation labor and time

Product Details

• Traction Hoist: Meets multiple international certifications. Platform is raised or lowered by friction between the speed reducer and the wire rope.
• Overload Detection Device: Electromechanical overload protection: platform will not rise when the rated load is exceeded. (Optional)
• Control System: Modular unit with stable performance and easy replacement.
• SafeLock: Tilt-locking function for rope angles of 3–11° with allowable impact force of 30 kN.
• Top Limit Switch: Prevents travel beyond stroke; fitted with ultimate top limit switch. (Optional)
• Platform: High-strength aluminium alloy platform — strong yet lightweight; suitable for personnel, tools and materials.

Scenarios

• Facility maintenance
• Building construction
• Bridge construction

Technical specifications

• Model: XP Series
• Platform length: 3+2 / 3+3 / 2+3+2 / 3+3+3+3 m
• Inside width: 60 cm
• End stirrup max length: 12 m
• Rated load: 280–980 kg
• Dead weight: 240–540 kg
• Standards: EN 1808
• Certificate: CE
