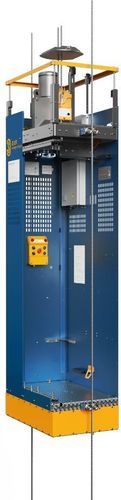

Motorized goods lift WM08R series

electricfor the construction industryfor construction

Overview
The wire rope-guided service lift runs on guide wire ropes on both sides and is moved along the working rope by a traction hoist. It is engineered for towers with limited top diameter and reduced headroom, providing vertical transport for personnel and tools during inspection, maintenance and construction operations.

Twelve Levels of Safety and Security

• Unique smart information prompting function – more convenient for operation and diagnostics.
• Fully independent lifting and safety systems – redundant protection for personnel and equipment.
• Omni-directional sensing limit device – full-range obstruction detection.
• Mechanical overload protection – prevents excessive loading.
• 60,000-cycle fatigue test for traction hoist – validated durability.
• Overspeed protection – automatic intervention on speed loss.
• High-strength load bearing structure – designed for long-term service loads.
• Manual descent – controlled lowering in power-failure scenarios.
• Back-up door with interlock switches – emergency access control.
• Mechanical interlock – additional fall protection.
• Electromagnetic door lock – emergency unlocking and secure closure.
• Platform indicator – visual position feedback of parking level.

Product Details - Key Components

• Traction Hoist: Drives ascent and descent by friction between reducer and wire rope for smooth vertical movement.
• Top Sensing Panel: Compresses on contact with obstacles and triggers an immediate stop signal.
• SafeLock: Emergency device that locks and stops the lift during speed loss.
• Anchor Point: Certified fall-protection attachment points for use with a full-body harness; each point rated for one operator.
• Control Cabinet: Integrated control system located inside the car for operational management.
• Operation Box: User interface for operating the lift, suitable for use inside or outside the car.
• Guide Wire Rope: Primary vertical guide rails enabling stable travel along the tower.
• Bottom Sensing Panel: Detects obstacles at the car base and signals for immediate stop.

Key Features

• Independent lifting and safety subsystems
• Omni-directional sensing limit device and safety limit switches for full-range protection
• Fall protection system to secure personnel and equipment
• Optional smart information control system for status and diagnostics
• Mechanical overload protection
• Advanced traction driving technology for stable operation
• High-strength load-bearing structure
• Manual descent for controlled emergency lowering
• Emergency back-up safety doors at top and bottom of car
• Optional platform indicator
• Optional mechanical interlock
• Optional electromagnetic door lock

Specifications (table)
Model: WM08R224 | WM08R230
Rated load: 240 kg | 300 kg
Capacity: 2 people | 2 people
Speed: 18 m/min, 21 m/min | 18 m/min, 21 m/min
Dimensions (LxWxH): 960 x 600 x 2980 mm | 960 x 600 x 2980 mm
Rated voltage: 400 V/690 V, 50 Hz/60 Hz, 3P+PE | 400 V/690 V, 50 Hz/60 Hz, 3P+PE
Operating temperature: -30℃ to 60℃ (custom low-temperature version available) | -30℃ to 60℃ (custom low-temperature version available)
Ambient temperature: -60℃ to 75℃ | -60℃ to 75℃

Technical specifications

• Model: WM08R224; WM08R230
• Rated load: WM08R224 = 240 kg; WM08R230 = 300 kg
• Capacity: 2 people (both models)
• Speed: 18 m/min or 21 m/min (both models)
• Dimensions (LxWxH): 960 x 600 x 2980 mm (both models)
• Rated voltage: 400 V / 690 V, 50 Hz / 60 Hz, 3P+PE
• Operating temperature: -30℃ to 60℃ (customizable low-temperature model available)
• Ambient temperature range: -60℃ to 75℃
• Safety features: omni-directional sensing limit device, mechanical overload protection, overspeed protection, SafeLock, mechanical interlock (optional), electromagnetic door lock (optional), emergency back-up doors, anchor points for fall protection
• Control & operation: Control cabinet inside car; operation box usable inside and outside the car; optional smart information control system and platform indicator
