Electric trailer lift

motorizedfor wind turbinesplatform

Overview

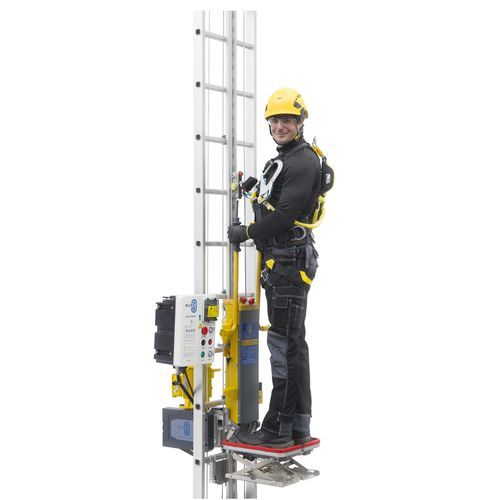

The Climb Auto System is a ladder-mounted personnel lift designed for single-person access during wind turbine retrofit and maintenance projects. Its compact structure mounts to existing ladders with minimal platform modification, enabling quicker installations and safe ascent without repeated manual climbing.

Add Value to Your Business

• Retrofit Installation in 8 Hours or Less: Can be fitted to most wind turbines by attaching to the existing ladder, minimizing downtime.
• Increased Uptime: Speeds technician access, allowing more tower visits per day for faster maintenance cycles and lower OPEX.
• Improved Health & Safety: Reduces repetitive climbing strain on technicians through mechanised ascent.
• Improved Employee Retention: Less physical fatigue improves job satisfaction and retention rates.

Key Features

• CE, ETL, UL and OSHA compliant
• Independent fall protection system
• Triple control system
• Overspeed lock-up
• Variable frequency drive
• Overload detection
• Platform approach indication
• Manual emergency brake
• Foldable footpanels for evacuation

Product Details / Components

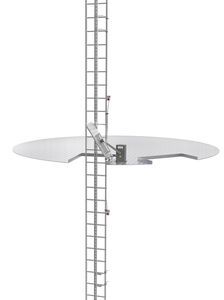

• Top Sheave: Compact design enables the CAS car to reach the highest platform levels.
• Operator’s Personal Fall Arrester: System allows the operator’s fall arrester to remain independent from the CAS fall protection.
• Climb Auto System’s Fall Protection Device: Redundant fall protection for personnel and equipment safety.
• Control Cabinet: Located at the tower base or down-tower; powers the system and enables remote operation of the CAS car.
• Remote Control: Call the car to the technician’s location or send tools and parts between platforms.
• Two-Handle Start-Up Switch: Requires simultaneous pressure on both handles to operate the CAS car for added safety.
• Collapsible Footboards: Fold-away design facilitates rapid evacuation when required.
• Bottom Sensing Panel: Compresses on contact with obstacles and triggers an immediate stop to prevent collision.

Technical Specifications

• Construction materials: Aluminum, steel
• Rated load: Man load capacity 140 kg (310 lbs); Freight load capacity 60 kg (132 lbs)
• Speed: 18 m/min
• Control method: Frequency conversion, vector control technology
• Rated voltage: Single / 3-phase AC 220 V, 50 Hz / 60 Hz (400 V optional)
• Dimensions: 431 × 468 × 1410 mm
• Certification: CE, ETL, UL and OSHA compliant
