Electric actuator IHM-15

rotaryAC230 V

Overview

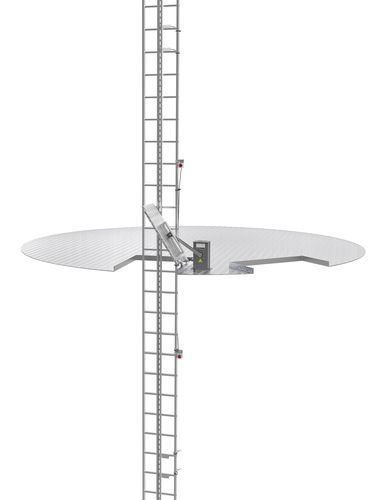

The Auto Hatch Opener automates opening and closing of platform hatches as climbing systems pass, enabling hands-free hatch control for personnel access on industrial platforms and wind turbine nacelles.

Key Benefits

• Smart control: automatic open/close triggered by distance recognition and sensors.
• Positive retention: built-in retention prevents the hatch from falling back during operation.
• Automatic zero calibration: ready for use without manual calibration steps.
• Compact footprint: designed to avoid interference with platform work areas.
• Long service life: expected service life >25 years based on materials and construction.
• Multi-scenario compatibility: compatible with manual climbing, Climb Assist and Climb Auto System; adapts to most wind turbine platforms and controls covers up to 15 kg with third-generation transmission and high torque output.
• Simple installation: single-cable connection and eight bolts; one installer can complete mounting in approx. 45 minutes (plug-and-play, minimal retrofit).
• Multi-level protection and maintenance-free design for extended field operation.

Product Details — Components & Operation

• Guide board: wheel guide fixed to platform hatches to ensure correct travel path.
• Connecting rod: transmits motion from drive unit to open and close hatches via the guiding device.
• Platform hatches: mounted on the platform skirting edge with hinges to prevent falls of personnel and objects; can use existing onsite hatch or be fabricated per site conditions.
• Button on platform (manual option): top-mounted button for manual open/close during personnel access.
• Button under platform (manual option): bottom-mounted button for manual open/close during personnel access.
• Drive unit: mounted on hinge side of the hatch; main power source for the Auto Hatch Opener.
• Upper sensor: installed at platform top for use with Climb Auto System; triggers automatic open/close when CAS is detected.
• Lower sensor: installed under the platform for CAS-triggered operation.

Models

• IHM-15 — side-opening model
• IHA-15 — back-opening model

Installation & Compatibility
Plug-and-play installation without structural retrofit or changes to line protection device specifications. Single-cable connection and eight bolts enable a typical single-person installation in ~45 minutes. Compatible with manual climbing, Climb Assist, Climb Auto System and similar access scenarios.

Additional Notes
Unit features temperature resistance and anti-corrosion treatment for extended service in diverse environmental conditions.

Specifications

• Model: IHM-15
• Dimensions: 174 mm × 131 mm × 314 mm
• Power supply: Single-phase AC 200–240 V
• Power: 60 W
• Protection grade: IP44 (higher grade optional)
• Anti-corrosion grade: C4
• Operating temperature: -40℃ – +60℃
• Certifications: CE, EMC, ETL, UL
• Max controllable cover weight: up to 15 kg
