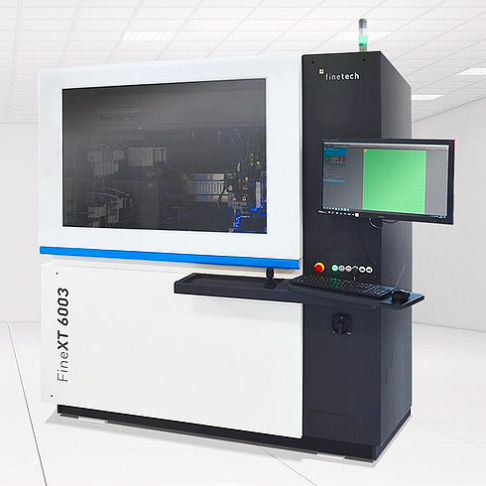

Large-Area Multi-Chip Production Die Bonder
The all new FineXT 6003 is a fully automatic large area production die bonder with true multi-chip, multi placement capability for high volume manufacturing.
The modular design allows to configure this production die bonder for multiple advanced packaging technologies. The machine’s capabilities can be easily enhanced to adapt to new technological trends in semiconductor manufacturing. Combined with an automatic material handling and tool management system, this ensures the production die bonder’s high degree of process flexibility for next-generation optoelectronic and demanding fan-out applications.
In operation, a speed mode and a precision mode can be flexibly combined. Given the frequently changing precision requirements during the assembly of multi-chip modules, this capability ensures optimal throughput and makes the production die bonder FineXT 6003 the perfect solution for modern semiconductor manufacturing environments.
Placement accuracy of 3 µm
Very large bond area for wafers and panels
Multi wafer capability
Automatic placement accuracy calibration
Fully automatic material management
Automatic tool management
Adjustable Speed for Production
Multi-chip capability
Granite base and air bearings
Wide range of component presentation (wafer, waffle pack, gel-pak®)
Modular machine platform allows in-field retrofitting during entire service life
Synchronized control of all process related parameters
Numerous bonding technologies (adhesive, soldering, thermocompression)
Various bonding technologies in one recipe
Integrated scrubbing function
Individual configurations with process modules
