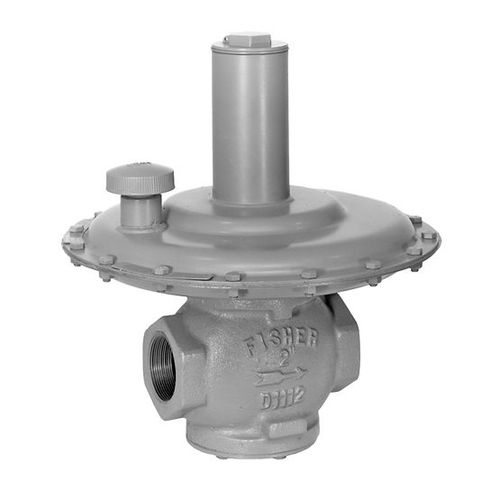

Gas pressure regulator 66 seriesmembranesingle-stageindustrial
Add to favorites
Compare this product
Characteristics
- Product
- for gas
- Technology
- membrane
- Number of stages
- single-stage
- Applications
- industrial, low-pressure, vacuum
- Other characteristics
- direct-operated
- Pressure
0.55 bar, 1.01 bar
(7.98 psi, 14.65 psi)- Flow
Max.: 1,340 m³/h
(47,321.65 ft³/h)Min.: 51.7 m³/h
(1,825.77 ft³/h)- Orifice diameter
50 mm, 80 mm, 100 mm
(1.969 in, 3.15 in, 3.937 in)- Temperature
Max.: 135 °C
(275 °F)Min.: -18 °C
(-0.4 °F)
Description
66 Series direct-operated pressure-reducing regulators are widely used in burner control, tank blanketing systems, and other applications where precise control of low-pressure industrial gases is needed, while 66 Series direct-operated vacuum service equipment comes in both vacuum regulator and vacuum breaker constructions.
Features
-Sensitive Response to Pressure Changes
- Seat Protection without Sacrifice in Shutoff Capability
-Tank Blanketing Capability
-Accuracy
-Application Flexibility
