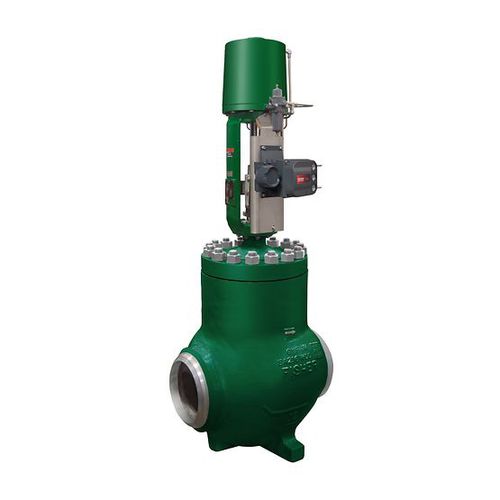

Pneumatic valve actuator 585C

linearpistondouble-acting

Fisher 585C piston actuators provide low to medium thrust output for a variety of small to medium Fisher sliding-stem valves, including the easy-e™, HP, EH, and 461 valves. The double-acting design of the actuator results in stiff, precise positioning. Smaller sizes of this actuator are also available with optional bias springs for a spring return fail mode. Specifications Certifications -PED, CUTR, ATEX Control Type -On/Off, Throttling, Positioning Operating Temperature -Standard Temperature Process Control -On/Off, Throttling, Positioning Valve Type -Angle Valve, Globe Valve Other Configurations -Contact your local Emerson business partner or sales office to learn about additional specifications or options for this product. Features -Maximum thrusts of up to 111 kN (25,000 lbf) can be produced, depending on construction. -Depending on size, strokes of up to 203 mm (8 in) are available. -Universal NAMUR mounting provides a consistent mounting method and also provides -vibration resistance per ISA-S75.13. -The double-acting construction allows stiff, precise positioning. -585C size 25 and 50 actuators are available with a top-mounted handwheel. All other 585C actuator sizes can accommodate a side-mounted handwheel. -Actuator sizes 25 and 50 are available with bias springs. A bias spring under the piston fully retracts the actuator stem upon loss of supply air, while a bias spring on top of the piston fully extends the actuator stem. -Low friction piston seals and cylinder coatings reduce sliding friction and wear.
