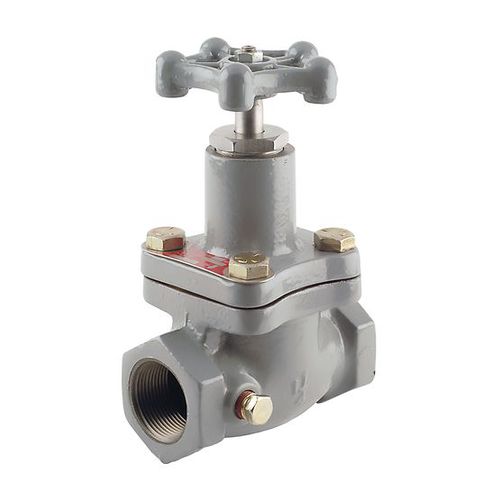

Globe valve N series with handwheelcontrolfor gas
Add to favorites
Compare this product
Characteristics
- Type
- globe
- Operation
- with handwheel
- Function
- control
- Media
- for gas
- Applications
- for bulk materials
- Other characteristics
- heavy-duty
- DN
Max.: 3 in
Min.: 0.5 in
- Pressure
27.6 bar
(400.3 psi)- Temperature
Max.: 66 °C
(151 °F)Min.: -29 °C
(-20 °F)
Description
Globe and Angle Valves are used at bulk plants to control gas flow in the piping system, at storage tanks, on trucks, and at pumps or compressors. Their configuration permits installation in a straight section of pipe (globe body) or where it is desired to make a change in piping direction (angle body). All valves have a 1/4-inch FNPT plugged boss in the downstream side of the body.
Features
-Heavy Duty Construction
-High Flow Capacity
-UL Listed
-Ball bearing valve disk construction
-PTFE seat disks instead of synthetic rubber for special service where synthetic rubber is not compatible
-PTFE spring loaded packing
