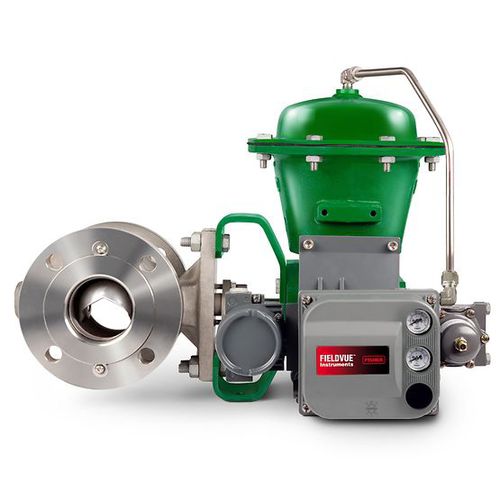

Ball valve Vee-Ball™ V300
pneumatically-operatedcontrolstainless steel

ball valve
ball valve
Add to favorites
Compare this product


Characteristics

Type
ball
Operation
pneumatically-operated
Function
control
Body
stainless steel, carbon steel, alloy

Description

The Fisher Vee-Ball V300 control valve is your best choice for performance and cost-effectiveness across a broad range of applications. The precision-machined parts and pressure-balanced seal designs allow smooth, precise valve operation. Features -Flanged body design eliminates exposed line flange bolting, reduces alignment and installation time, and promotes secure valve installations and piping integrity. -The solid HD ball seal construction provides long service life in demanding applications. Precise contouring of the Vee-Ball provides a modified equal percentage flow characteristic. -Materials are available for applications involving sour liquids and gases. These constructions comply with NACE MR0175-2002, MR0175-2003, MR0103, and MR0175/ISO 15156. -Ball seal inspection and replacement is done at the valve body inlet, without removing the actuator or disassembling the valve. -The one-piece valve body improves structural integrity of the pressure boundary by eliminating leak paths that could be caused by the gaskets in two-piece, bolted valve designs. -The optional ENVIRO-SEAL™ packing systems are designed with very smooth shaft surfaces and live loading to provide exceptional sealing. Specifications Certifications -SIL capable, ATEX, CUTR, PED, CRN, Fugitive Emission, NACE Critical Service -Noise Abatement, Cavitation, Dirty Service, Erosive, Low Flow, General Service Flow Characteristics -Equal Percentage Material -Carbon Steel, Stainless, Duplex, Alloy Operating Temperature -Standard Temperature Pressure Class -PN, ASME Process Connection Type -Flanged Valve Size Standard -NPS, DN
