Peristaltic pump dispensers transfer low-viscosity liquids by pressure displacement applied to a turning rotor against a tube-carrying fluid.

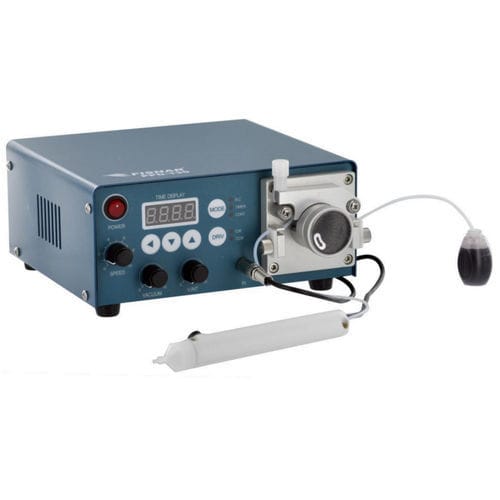

The PPD-130 offers excellent features for air-free positive displacement dispensing of materials, such as cyanoacrylates, solvents, acids, and other low-viscosity materials.
Dispense outputs can be timed from 0.01 to 99.99 seconds with flow speeds from 0.01 to 6 ml/min using PTFE tubing. The pump is bidirectional allowing snuff-back after discharge to prevent dripping.
• Forward and reverse motion
• Adjustable interval before reverse direction
• Continuous or timer modes
• Output signal to indicate end of cycle
• Large segment digital LED display
• Air-free dispensing
• Instant reverse for snuff-back of liquid flow
• Cycle Rate : 0.01 - 99.99 secs
• Flow Speed : 0.01 - 6 ml / min
• Rotor Speed : Up to 120rpm
• Dispense Pressure : Over 105 kg/cm2
• I/O : Connection for Remote Operation
• Input Voltage : 110 - 240 VAC - 50/60Hz
• Dimensions (WxDxH) : 7.18 x 3.20 x 6.73”
• Weight : 2.99 kg
• Standards : CE Approved, RoHS Compliant
