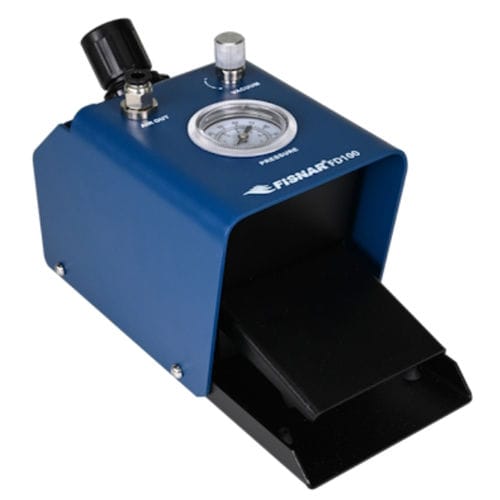

Liquids dosing dispenser FD100

syringecartridgepedal-operated

The FD100 foot pedal dispenser is an all-pneumatic fluid dispense system suitable for all types of fluids. The unit is easily actuated by pressing down the metal pedal allowing the user a simple yet effective method of dispensing fluid from a syringe or cartridge. An internally actuated air valve, pressure regulator and gauge ensure consistent dispense results. The vacuum control valve can be used to prevent low viscosity fluids from dripping in-between dispense cycles Features Economical and simple to use Suitable for wide range of applications Adjustable vacuum suck-back control All pneumatic operation Specifications Cycle - Maintained by User Foot Pedal - Air Valve in Unit Air Input - 100 psi (7 bar) max Air Output - 1 - 100 psi (0.07 - 7 bar) Dimensions (W x D x H) - 3.9 x 8.2 x 4.3" (100 x 208 x 110 mm) Weight - 4.01 lbs (1.82 kg)
