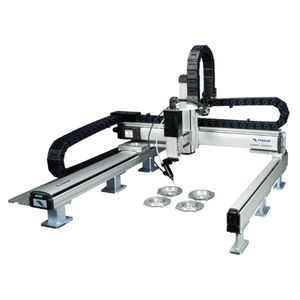

Gantry robot F5300N.2
3-axisdispensingbenchtop

gantry robot
gantry robot
Add to favorites
Compare this product


Characteristics

Type
gantry
Number of axes
3-axis
Function
dispensing
Mounting
benchtop
Other characteristics
compact, high-speed
Payload

2 kg
(4.409 lb)

Reach

150 mm, 300 mm
(5.91 in, 11.81 in)

Repeatability

0.02 mm
(0.0008 in)

Speed

0.3 m/s, 0.5 m/s
(1 ft/s, 1.6 ft/s)

Weight

28 kg
(61.7 lb)

Length

483 mm
(19 in)

Width

595 mm
(23.4 in)

Description

The F5300N.2 robot is a compact and cost-effective gantry style robots with all moving axes above the work piece. The Unitop™ design is suitable for dispense applications requiring a configuration that provides open access under the robot. This robot is ideal for conveyor-fed automation lines or installed into automated work cells. They are also advantageous when component weight or size prevent a conventional benchtop robot from being used. Programming and control can be carried out via teach pendant, RS232, or propietary PC software (sold separately). Compact and lightweight gantry-style design Work area up to 300 x 300mm Axis repeatability 0.02mm Durable linear belt drive system for industrial applications USB port for data transfer RS232 port for remote operation Modular Connectivity Interface Working Area X/Y/Z (mm) : 300 x 300 x 150mm Maximum Speed (X&Y/Z) : 500 / 320mm / secs Tool Load-Z-Axis : 2kg Repeatability : +/- 0.02mm / axis Resolution : 0.001mm / axis Motion Control : PTP & CP Drive System : Micro stepping motors Data Memory : 1-100 programs 50,000 points / program I/O Signals : 8 inputs / 8 outputs External Interface : USB / RS232 Power Supply : Auto-switching AC 100-240 VAC, 320 watts Dimensions (W/D/H) : 595 x 483 x 569mm Weight : 28kg Approvals : CE, RoHS, WEEE
