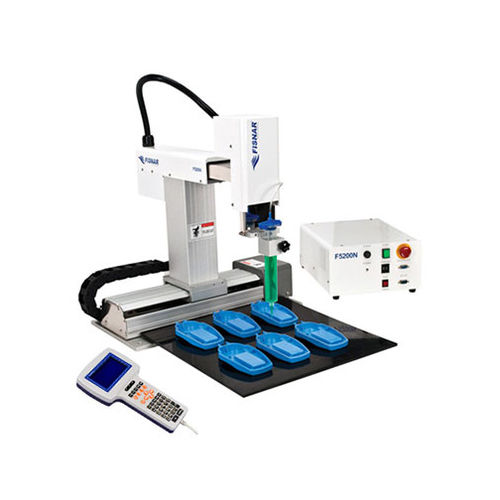

Gantry robot F5200N.2

3-axisdispensingbenchtop

The model F5200N.2 is a compact and versatile gantry robot with all moving axes above the work piece. The Unitop™ design is suitable for applications requiring a mount that provides open access under the robot. This robot is ideal for conveyor-fed automation or installed in work cells, operating as a stationary robot. When higher workloads or part size prevent using standard benchtop robots, the F5200N.2 can meet these demands. Programming is simply carried out by a teach pendant (included) using the industry’s leading dispensing software that walks the user through step-by-step instructions to create a sophisticated dispensing operation in minutes. Features • Gantry-style design allowing for flexible operation • Separate control box for reduced footprint • Z-axis reach allows for larger applications • Tip alignment routine for quick program offsets • Durable linear belt drive for industrial environments • In-line capability for increased throughput • Step and repeat functionality • Resolution : 0.001 mm / axis • Motion Control : PTP & CP • Drive System : Micro stepping motors • Data Memory : 1 - 100 programs | 50,000 points / program • I/O Signals : 8 inputs / 8 outputs • External Interface : USB / RS232 • Power Supply : Auto-switching AC 100 - 240 VAC, 320 watts • Approvals : CE, RoHS, WEEE
