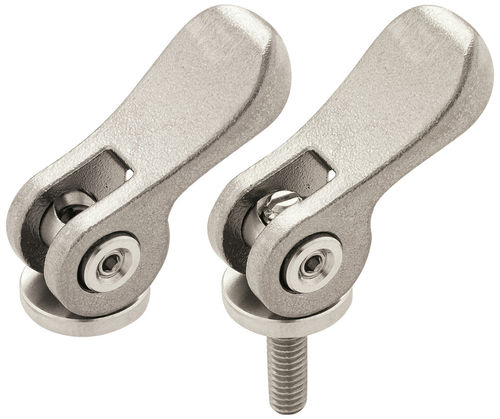

Stainless steel cam lever QLCCS series

internal threadadjustablewith external thread

Description
These cam action lever fasteners provide rapid, tool-free fastening and unfastening in confined spaces. The compact design and stud-type handle—adjustable to any direction—allow reliable clamping where access is limited. Thread like a conventional fastener; perform final tightening by pushing the cam lever down. Pull the lever up to release clamping force and unthread the fastener as needed. Handles and studs are 300 series stainless steel; washers are 304 stainless steel.

Operation

• Thread engagement to position the fastener
• Push lever down for final clamping (cam action)
• Pull lever up to release clamping force and unthread

Product Types

• QLCCS — Cam Levers — Tapped or stud, stainless

Available Parts (examples)

• QLCCS-03 — M3×0.50, tapped
• QLCCS-03X10 / QLCCS-03X15 — M3×0.50, stud variants (10 mm, 15 mm)
• QLCCS-04 / QLCCS-04X15 / QLCCS-04X30 / QLCCS-04X40 — M4×0.70, tapped and stud lengths
• QLCCS-05 / QLCCS-05X20 — M5×0.80, tapped and stud

Technical specifications

• Model / Series: QLCCS
• Function: Cam action lever fastener for quick fastening/unfastening without tools
• Design: Compact for tight spaces; stud-type handle adjustable to any direction
• Operation: Threaded engagement; final clamp by pushing lever down; release by lifting lever
• Materials: Handle and studs — 300 series stainless steel; Washers — 304 stainless steel
• Thread options: M3×0.50, M4×0.70, M5×0.80
• Base diameters (representative): 10 mm, 12 mm, 14 mm
• Available types: Tapped (A) and Stud (B); multiple stud length variants (e.g., X10, X15, X20, X30, X40)
• Representative dimensional/performance data provided in parts table (D, D1, D2, L, W, W1, W2, W3, R, Clamping Stroke, Operating Load, Clamping Force)

Applications

• Ideal for quick-change operations where components are loosened but not fully disassembled
• Common uses: fixtures, jigs, tooling, maintenance panels, assembly lines and where frequent, rapid clamping is required
