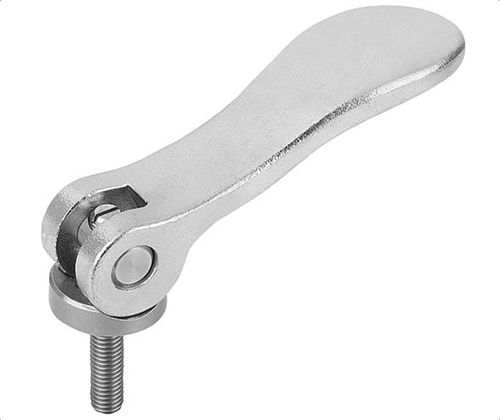

Plastic cam lever 04232 series

stainless steelwith external threadinternal thread

Description
This cam action lever fastener (model 04232) provides tool-free quick fastening and unfastening for applications where parts are loosened rather than fully disassembled. Engage by threading; push the cam lever downward for final clamp and pull the lever up to release clamping force and permit unthreading.

Applications

• Quick-change assemblies and fixtures
• Maintenance operations requiring frequent loosening
• Jigs, tooling and production fixtures in industrial environments

Product Types

• Stainless steel stud
• Stainless steel internal thread

Part Options

• 04232-1120A1X20 — #10-32, thread length 0.79 in — ID 120402
• 04232-1120A1X30 — #10-32, thread length 1.18 in — ID 120406
• 04232-1120A1X40 — #10-32, thread length 1.57 in — ID 120408
• 04232-1120A1X50 — #10-32, thread length 1.97 in — ID 120412
• 04232-1120A2X20 — 1/4-20, thread length 0.79 in — ID 120419
• 04232-1120A2X30 — 1/4-20, thread length 1.18 in — ID 120430
• 04232-1120A2X40 — 1/4-20, thread length 1.57 in — ID 120434
• 04232-1120A2X50 — 1/4-20, thread length 1.97 in — ID 120438
• 04232-2120A3X25 — 5/16-18, thread length 0.98 in — ID 121126
• 04232-2120A3X30 — 5/16-18, thread length 1.18 in — ID 121127

Technical specifications

• Model / Series: 04232
• Function: Cam action lever fastener for quick fastening/unfastening without tools
• Operation: Thread to engage; push cam lever downward for final tightening; pull lever up to release clamping force and permit unthreading
• Ideal use: Quick change operations where parts only need loosening, not full disassembly
• Handle material: 300 series stainless steel
• Stud material: 300 series stainless steel
• Handle finish: Electrolytic polished
• Stud finish: Natural
• Thrust washers: Plastic
• Available thread sizes and part numbers: see Part Options list above (inch thread variants)
• Units shown on page: Inch (page also has Metric option)
