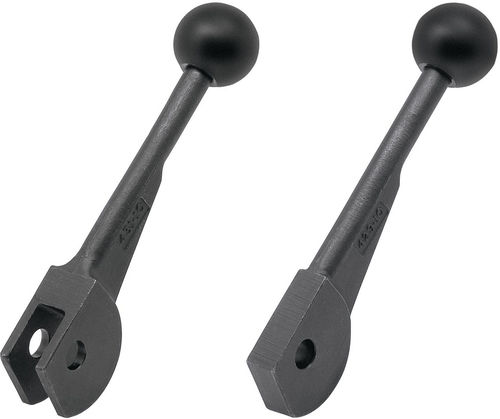

Steel cam lever BJ16x

plasticwith plastic handle

Description
Cam action handle designed for use with strap clamp assemblies to clamp and release workpieces. The handle attaches to a strap-clamp eyebolt, a custom drawbar or an open clamp strap using a pin and retaining ring (pin/retaining ring not included). For full tightening, push the cam knob down; to release clamping force, pull the handle up. Handle: quenched and tempered 4135 steel with black oxide finish. Knob: phenolic plastic (ball knob).

Part options

• BJ167-08001 — Straddle configuration — D=25 mm, D1=8 mm — Clamping force: 899 Lbs
• BJ167-10001 — Straddle configuration — D=30 mm, D1=10 mm — Clamping force: 955 Lbs
• BJ167-12001 — Straddle configuration — D=30 mm, D1=12 mm — Clamping force: 1011 Lbs
• BJ168-08001 — Single configuration — D=25 mm, D1=8 mm — Clamping force: 899 Lbs
• BJ168-10001 — Single configuration — D=30 mm, D1=10 mm — Clamping force: 955 Lbs
• BJ168-12001 — Single configuration — D=30 mm, D1=12 mm — Clamping force: 1011 Lbs

Media

• Specifications (PDF available)
• How to Use (illustration/image available)

Technical specifications

• Model family: BJ16x (includes BJ167 = straddle configuration and BJ168 = single configuration)
• Handle material: quenched and tempered 4135 steel
• Finish: black oxide
• Knob material: phenolic plastic (ball knob)
• Operation: push knob down for full tightening; pull up to release clamping force
• Intended use: for strap clamp assemblies; attach to strap clamp eyebolt, custom drawbar or open clamp strap with pin and retaining ring (pin/retaining ring not included)
• Units: metric dimensions provided
• Available part numbers: BJ167-08001, BJ167-10001, BJ167-12001 (straddle); BJ168-08001, BJ168-10001, BJ168-12001 (single)
• Document available: product specification sheet (PDF)

Installation & use notes

• Verify compatibility of eyebolt or drawbar diameter and retaining method before installation.
• Secure with appropriate pin and retaining ring (not supplied) to prevent axial play.
• Apply push/pull motion on the knob to engage/disengage clamping; avoid side loads on the pin.
• Refer to specification sheet for dimensional and load data when selecting part number.
